Ambassador Building, Embassy Gardens

Ambassador Building, Embassy Gardens

Completed

Winner

Planning Application Link View map

Number/street name:
5 New Union Square, Nine Elms

Address line 2:

City:
London

Postcode:
SW11 7BQ

Architect:
FCBStudios

Architect contact number:


Developer:
Ballymore.

Contractor:
Ballymore

Planning Authority:
Wandsworth London Borough Council

Planning Reference:
2012/5802

Date of Completion:

Schedule of Accommodation:
142 x 2 bedroom flats

Tenure Mix:
Market sale

Total number of homes:


Site size (hectares):
4.7

Net Density (homes per hectare):
66

Size of principal unit (sq m):
80

Smallest Unit (sq m):
38.5

Largest unit (sq m):
193

No of parking spaces:
0

Scheme PDF Download



Planning History

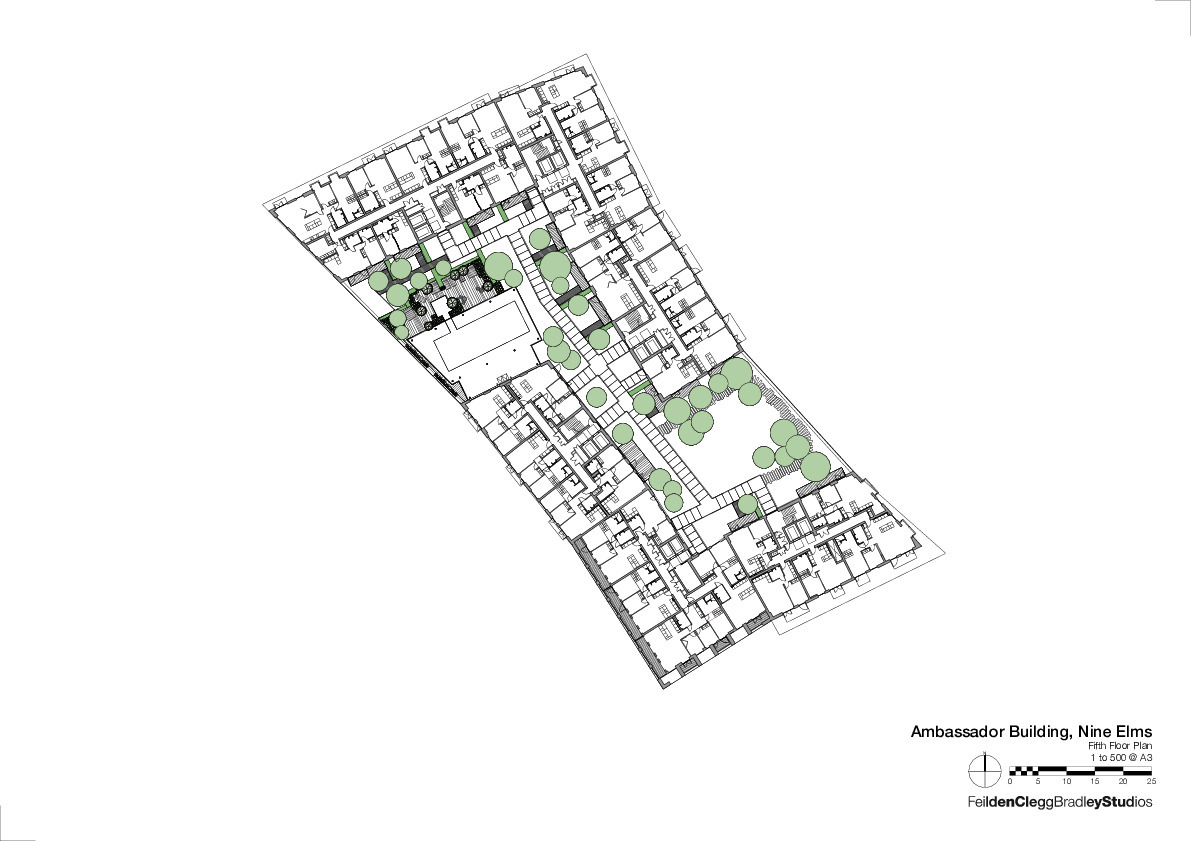

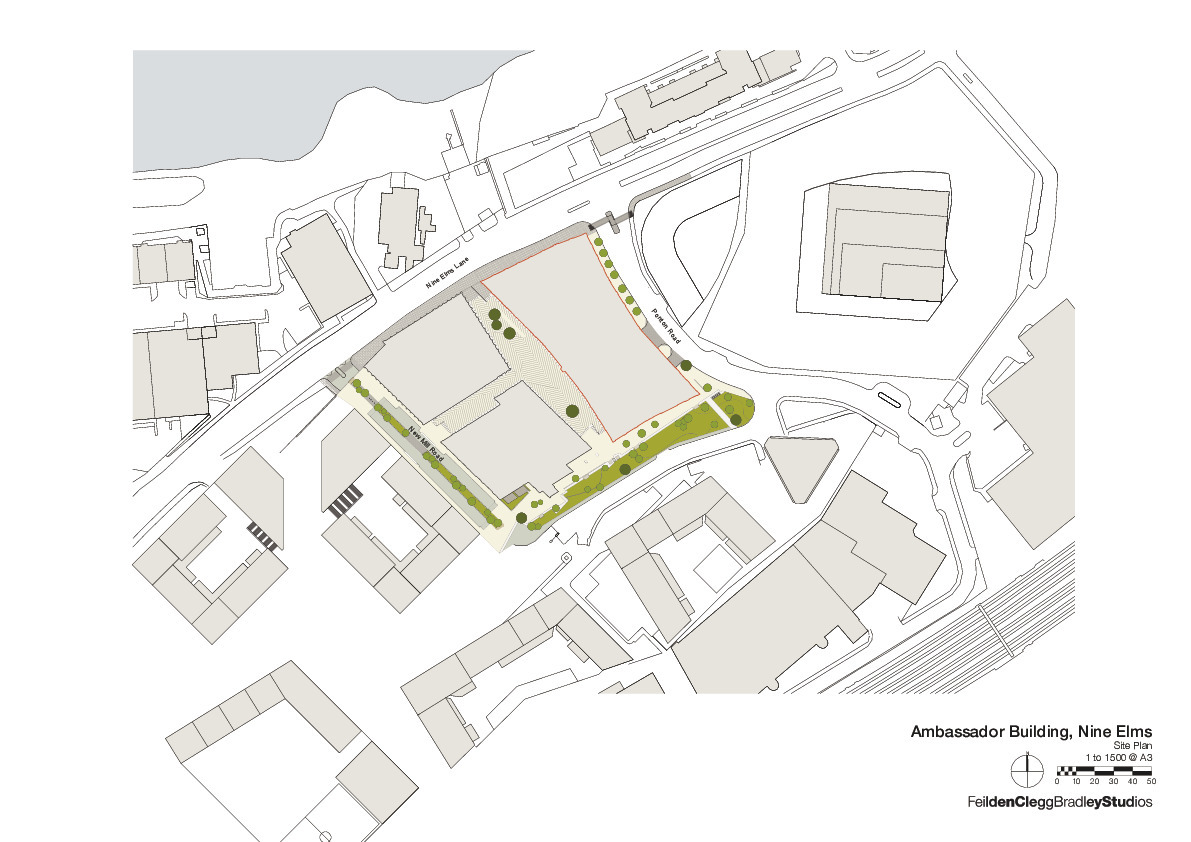

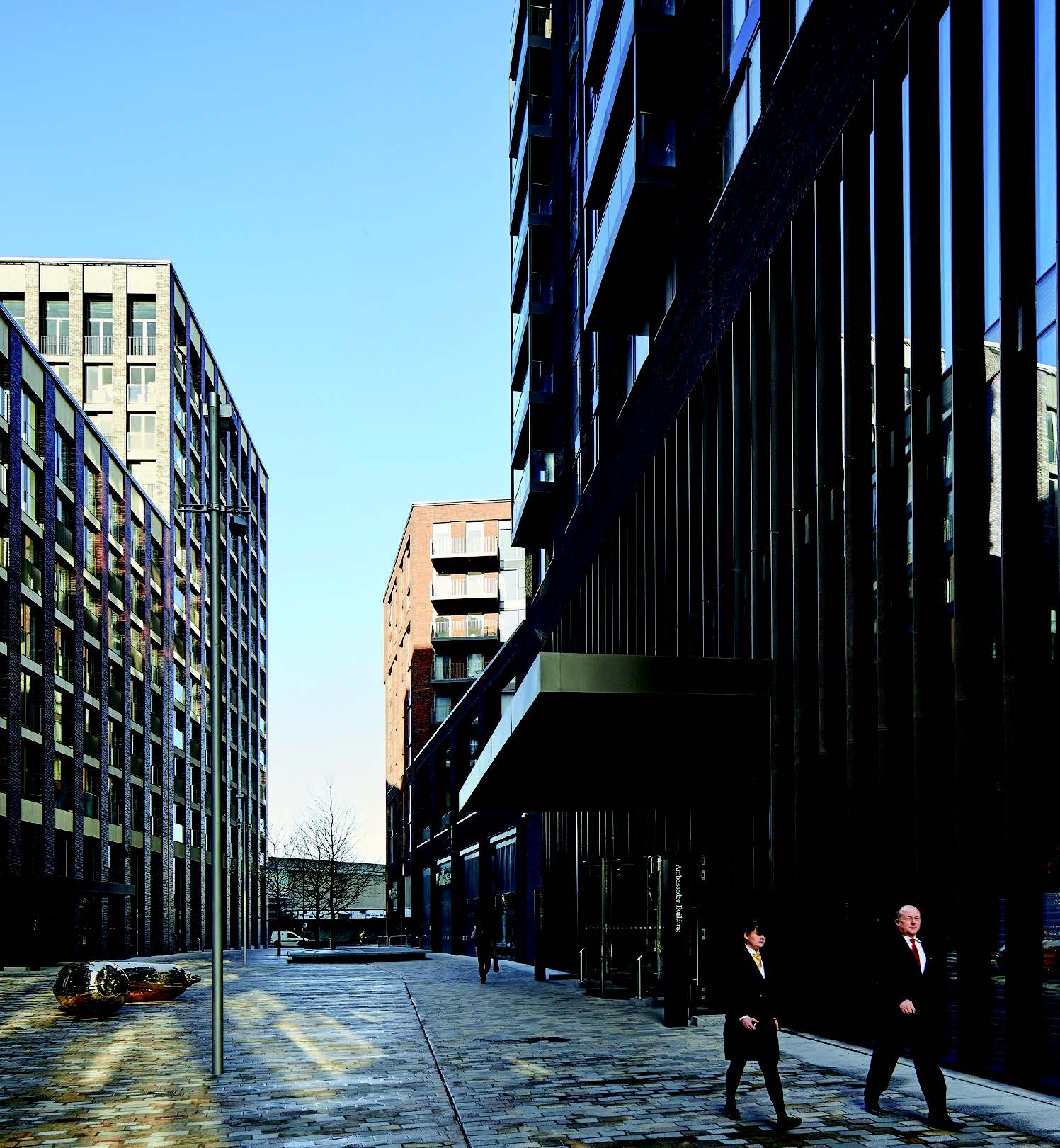

The project was commissioned at the end of 2009 with a grouping of three architectural practices working on the delivery of the first phase of the Embassy Gardens masterplan. The overall masterplan for the Embassy Gardens masterplan had been undertaken in outline by Farrell & Partners and comprised of a series of compact courtyard blocks with an emphasis on high levels of permeability and a finer urban grain. The masterplan evolved as a dialogue between the masterplanners and the phase 1 architects through a long series of workshop sessions that included both client, local authority and GLA as participants. The design developed into a more innovative urban proposal that created party wall conditions between building plots to allow a more varied set of heights to be realised while maximising daylight, views and shared amenity space around a central public square – a series of buildings that borrowed from each other.

The Design Process

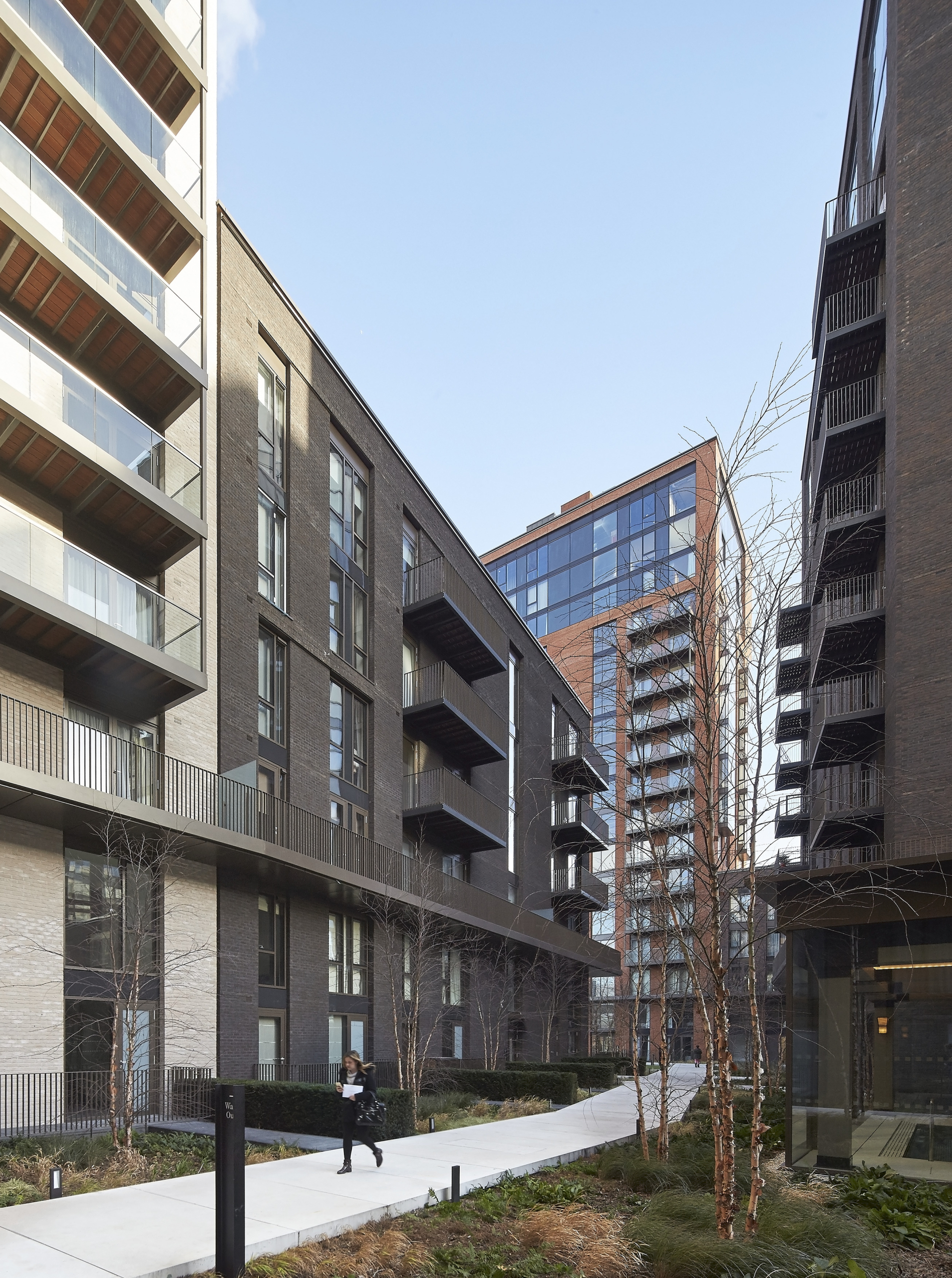

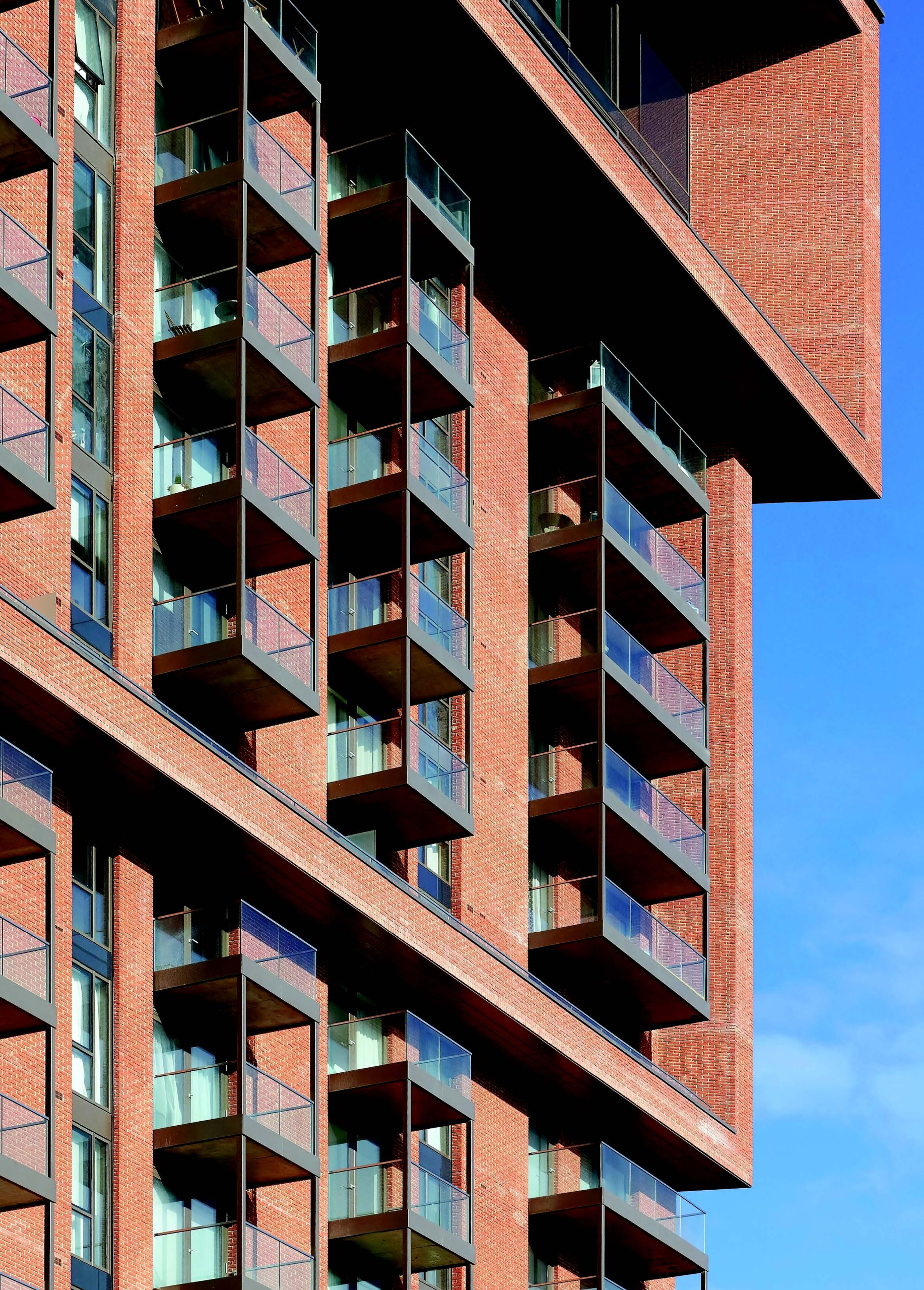

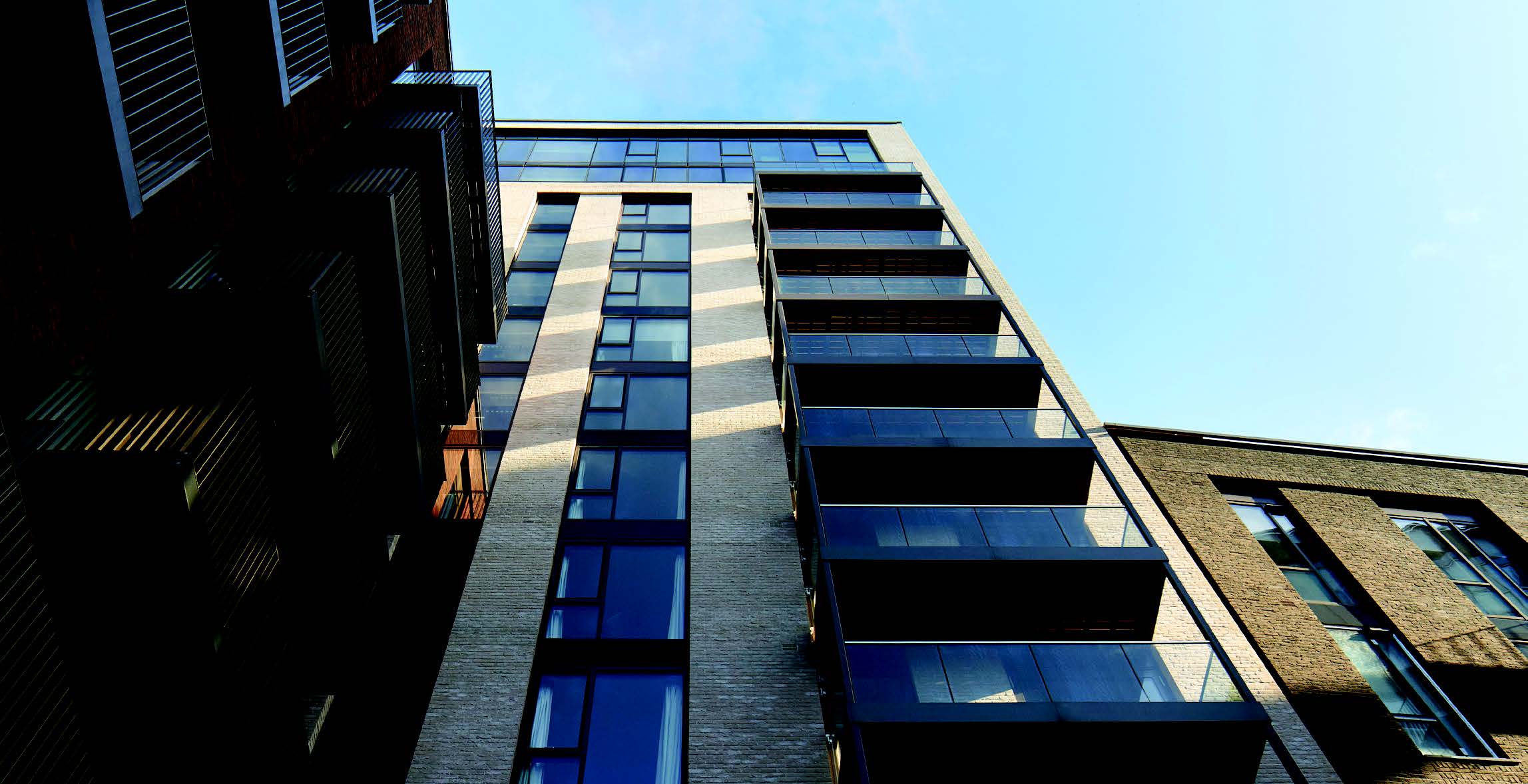

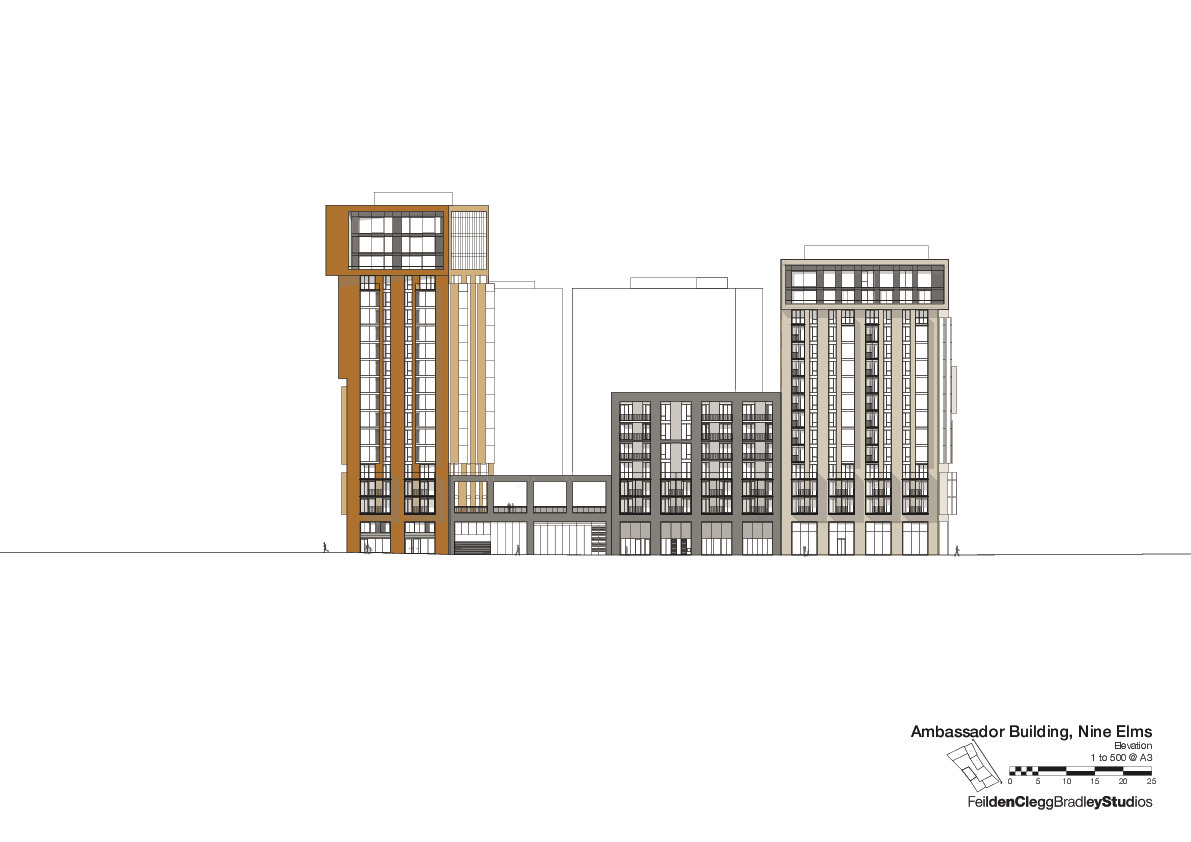

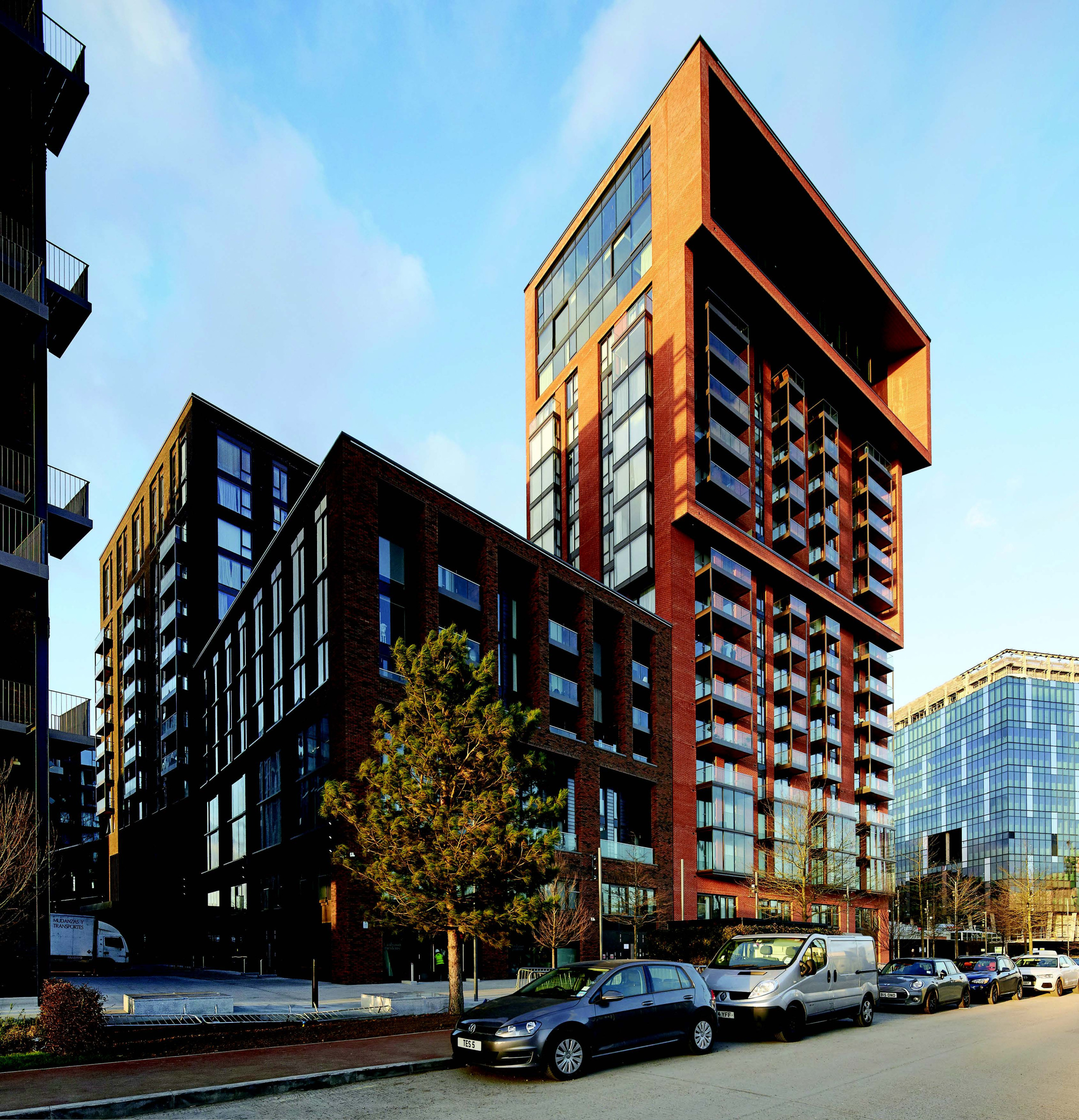

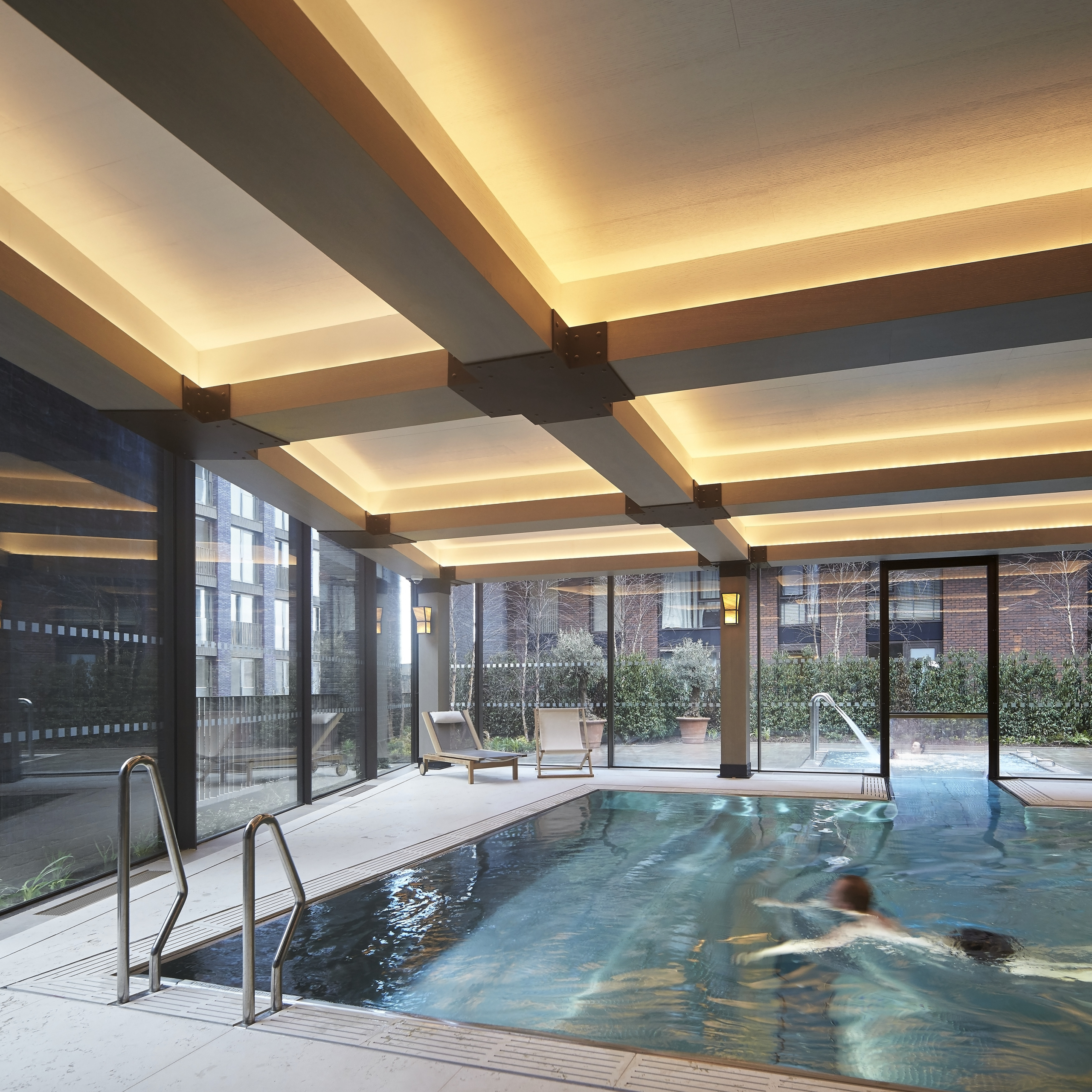

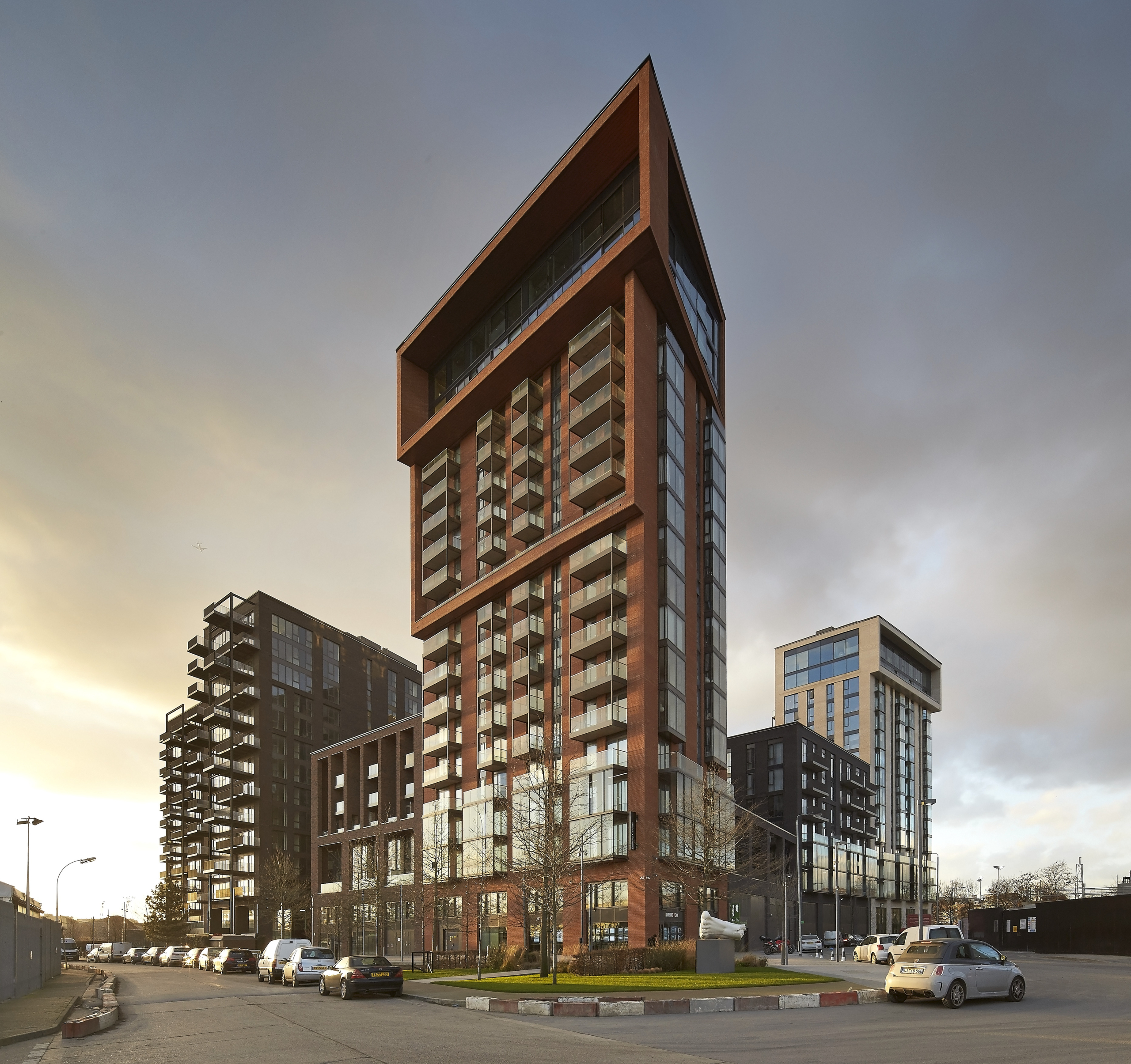

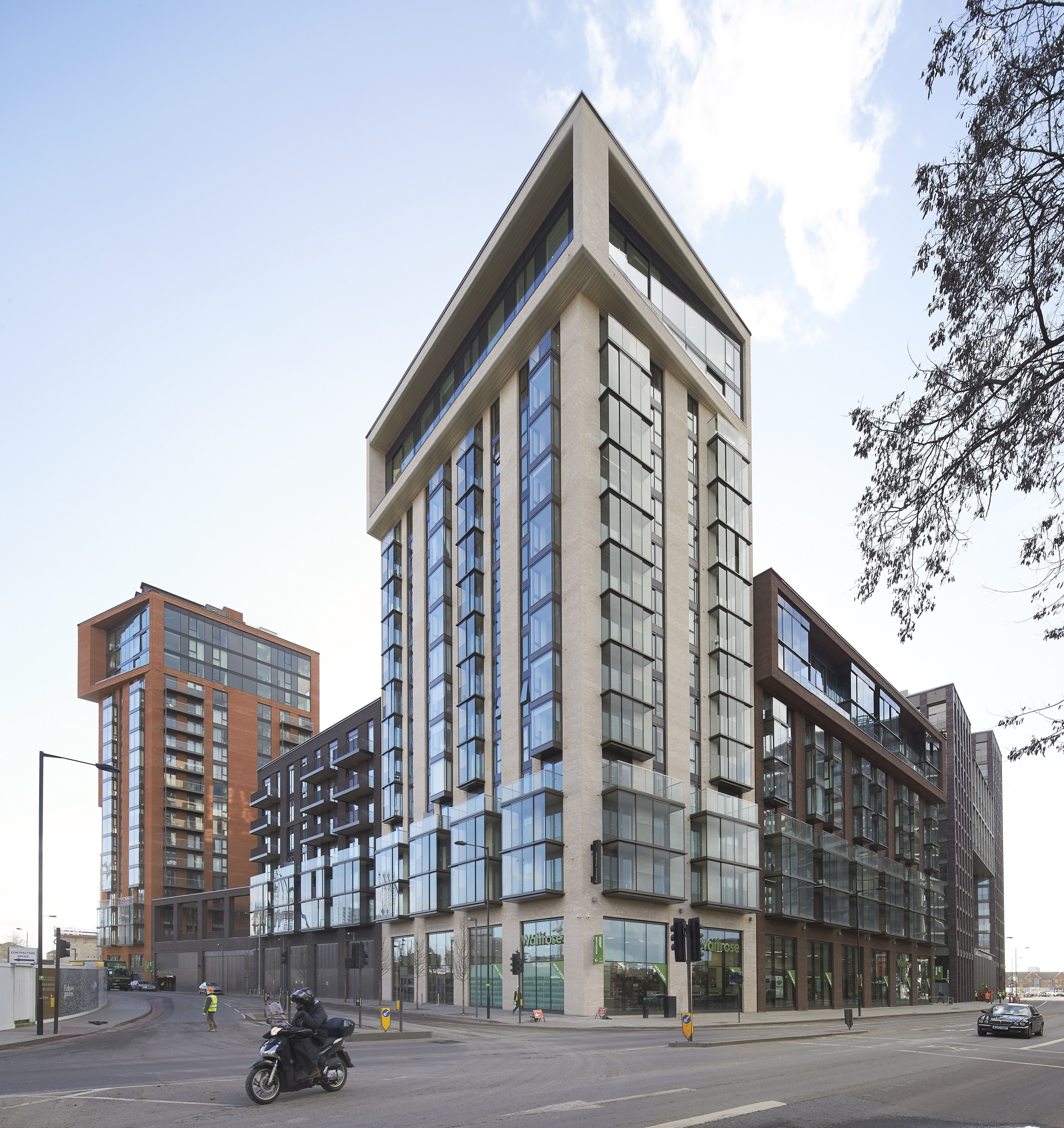

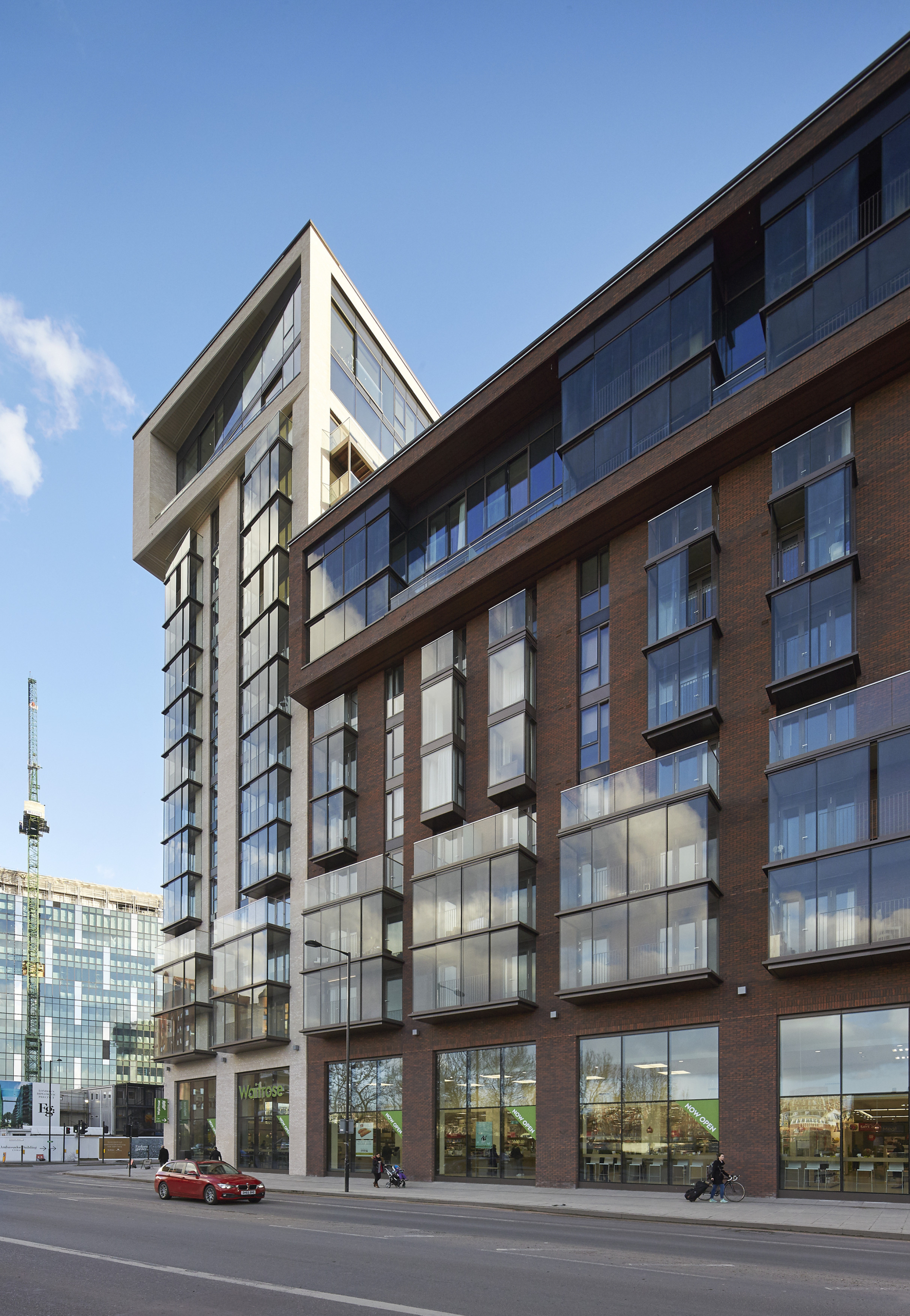

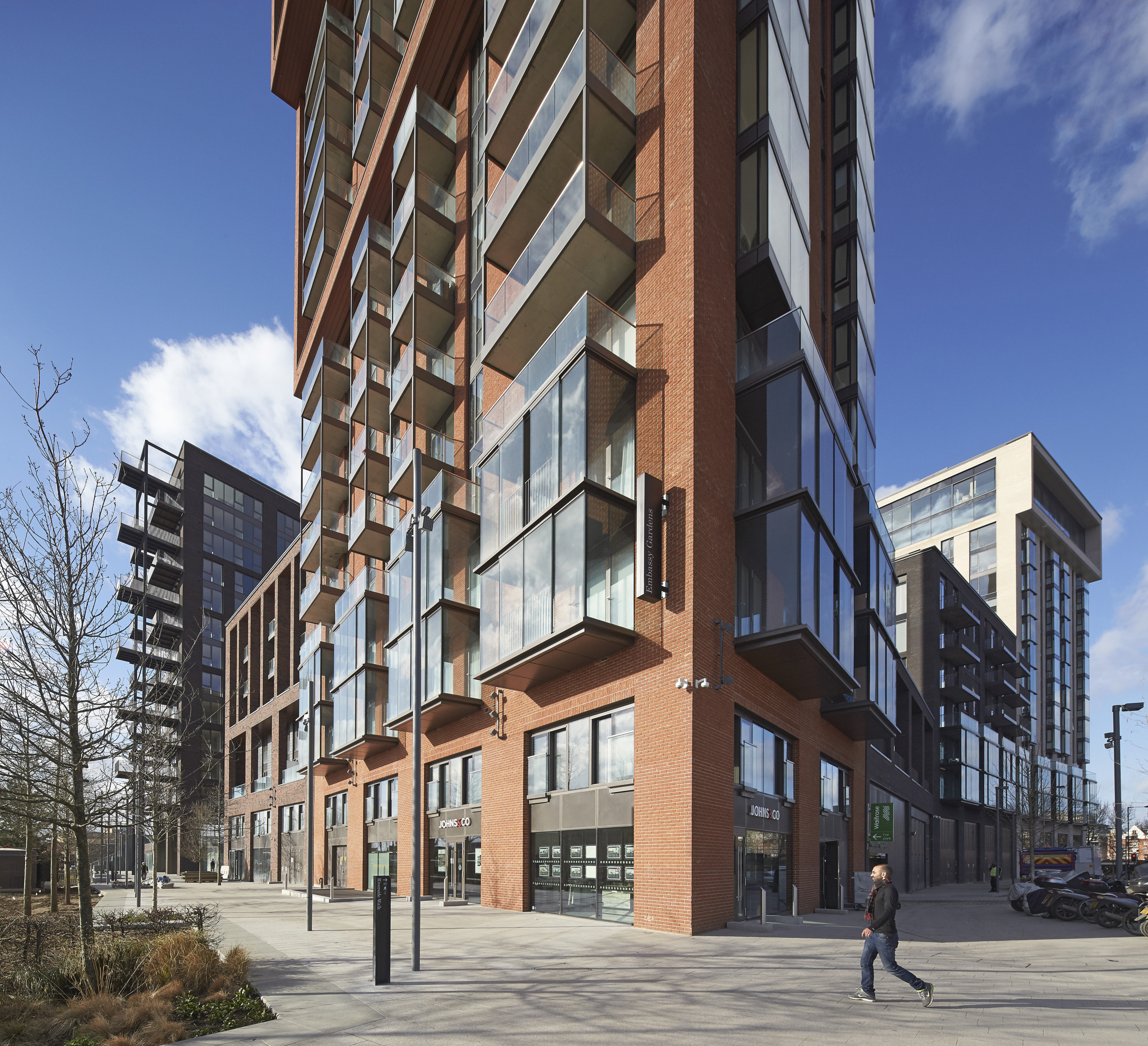

The design developed as a series of masonry / brick clad forms that allowed variety and character while establishing a consistent backdrop to the glass clad Embassy – this language has been taken through into the later stages of the masterplan. The scheme was submitted as part of a hybrid application in April 2011 with an approval granted in March 2012. Minor amendments to the Ambassador Building included the creation of a more compact gym with podium level pool integrated into the landscape , an increase in the variety of brick tones and refinement of the tower heads. These amendments were approved in May 2013.

Download PDF

Scheme Information

Size

  • NULL

Sustainability

  • Low energy in use
