Hale Wharf

Hale Wharf

Completed

Shortlisted

Planning Application Link View map

Number/street name:
Hale Wharf

Address line 2:

City:
London

Postcode:
N17 9NF

Architect:
Allies and Morrison

Architect contact number:
02079210100


Developer:
Waterside Places (a joint venture between Muse and Canal & River Trust), in partnership with London Borough of Haringey and the GLA.

Contractor:
McLaren Construction

Planning Authority:
London Borough of Haringey

Planning consultant:
Quod

Planning Reference:
Phase 1 granted in detailed under the hybrid consent: HGY/2016/1719 Phase 2 granted in outline under the hybrid consent: HGY/2016/1719 Phase 2 RMA: HGY/2018/2351 Block K RMA: HGY/2021/3192

Date of Completion:
08/2024

Schedule of Accommodation:
13 x studio unit; 211 x 1 bed unit; 254 x 2 bed unit; 27 x 3 bed unit

Tenure Mix:
29% private sale; 37% social rent; 34% private rental

Total number of homes:
505


Site size (hectares):
2.28

Net Density (homes per hectare):
284

Size of principal unit (sq m):
97

Smallest Unit (sq m):
40.7

Largest unit (sq m):
137

No of parking spaces:
58 parking spaces of which 50 are designated for disabled persons.

Scheme PDF Download



Planning History

Outline planning approval was granted in June 2017 for up to 505 residential units, and the detail design of Phase 1 (Block A and B) which provide 249 units and 307sqm of commercial space.

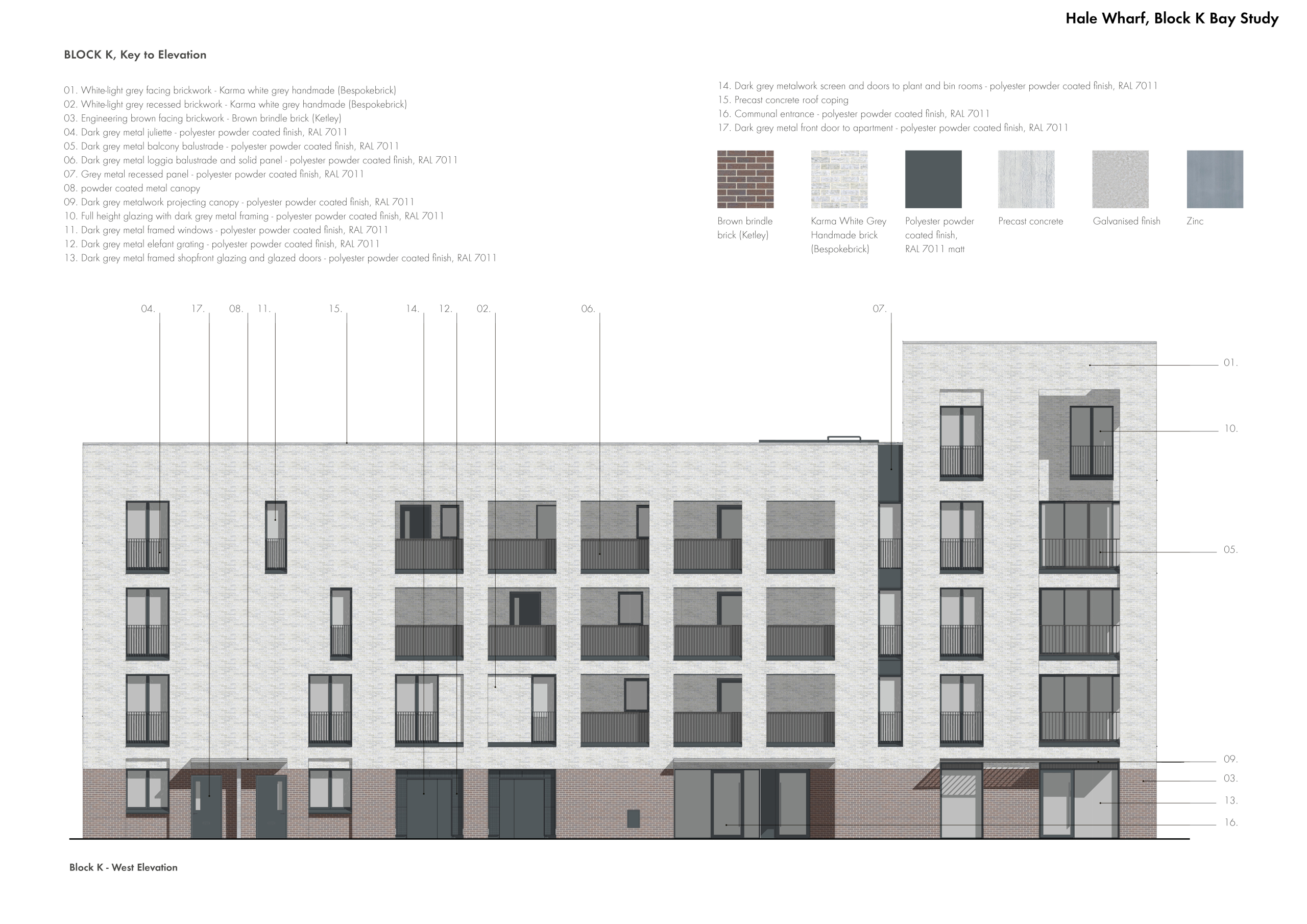

Detail planning approval for Phase 2 was granted in November 2018 for Blocks C, D, E, F, H, I and J which provide 245 residential units and 109sqm of commercial space, with landscaping and infrastructural works. Building heights range from ground +3 to ground +9 storeys. Block K was included in the outline approval but submitted as a separate application and approved in February 2022.

The Design Process

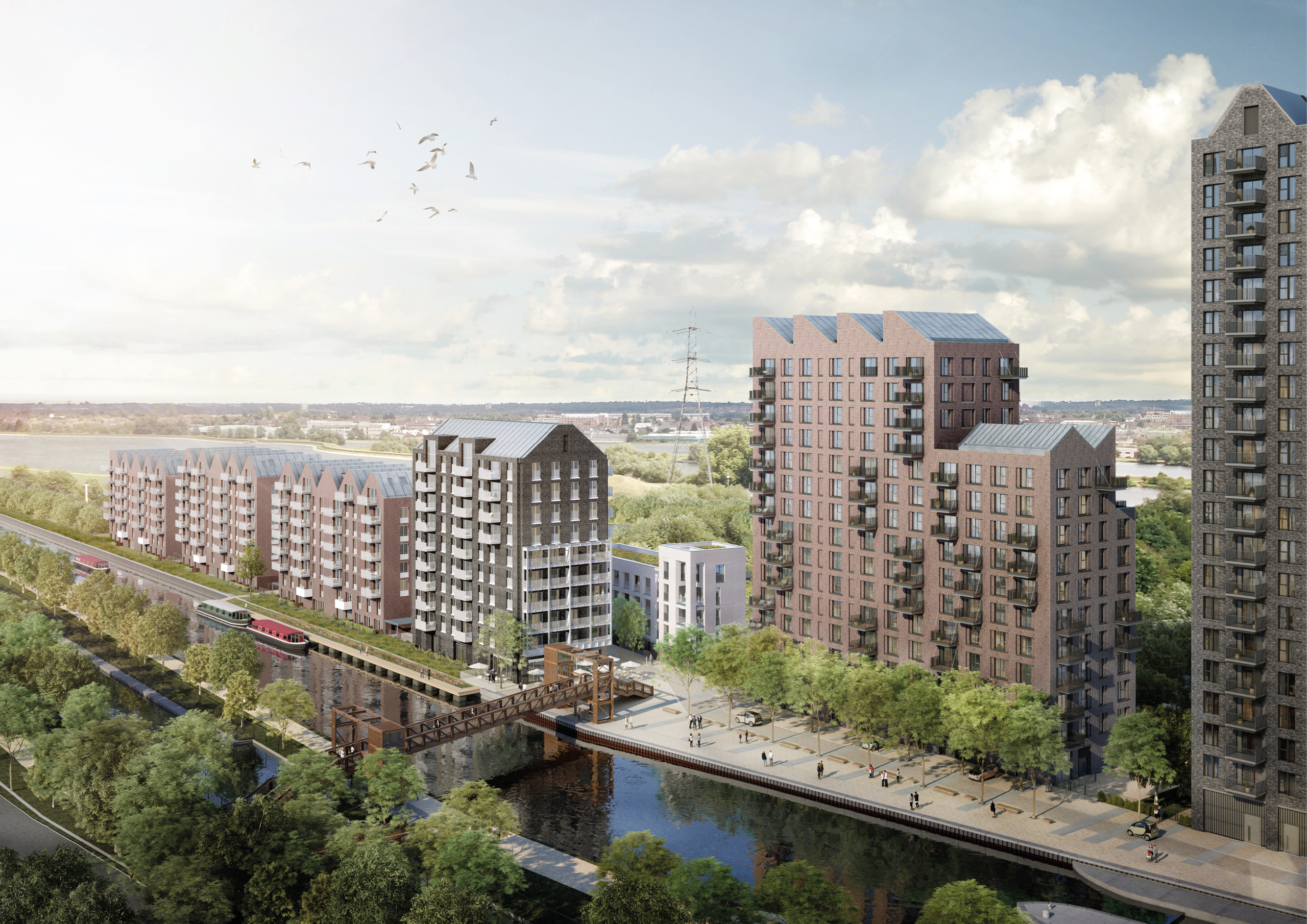

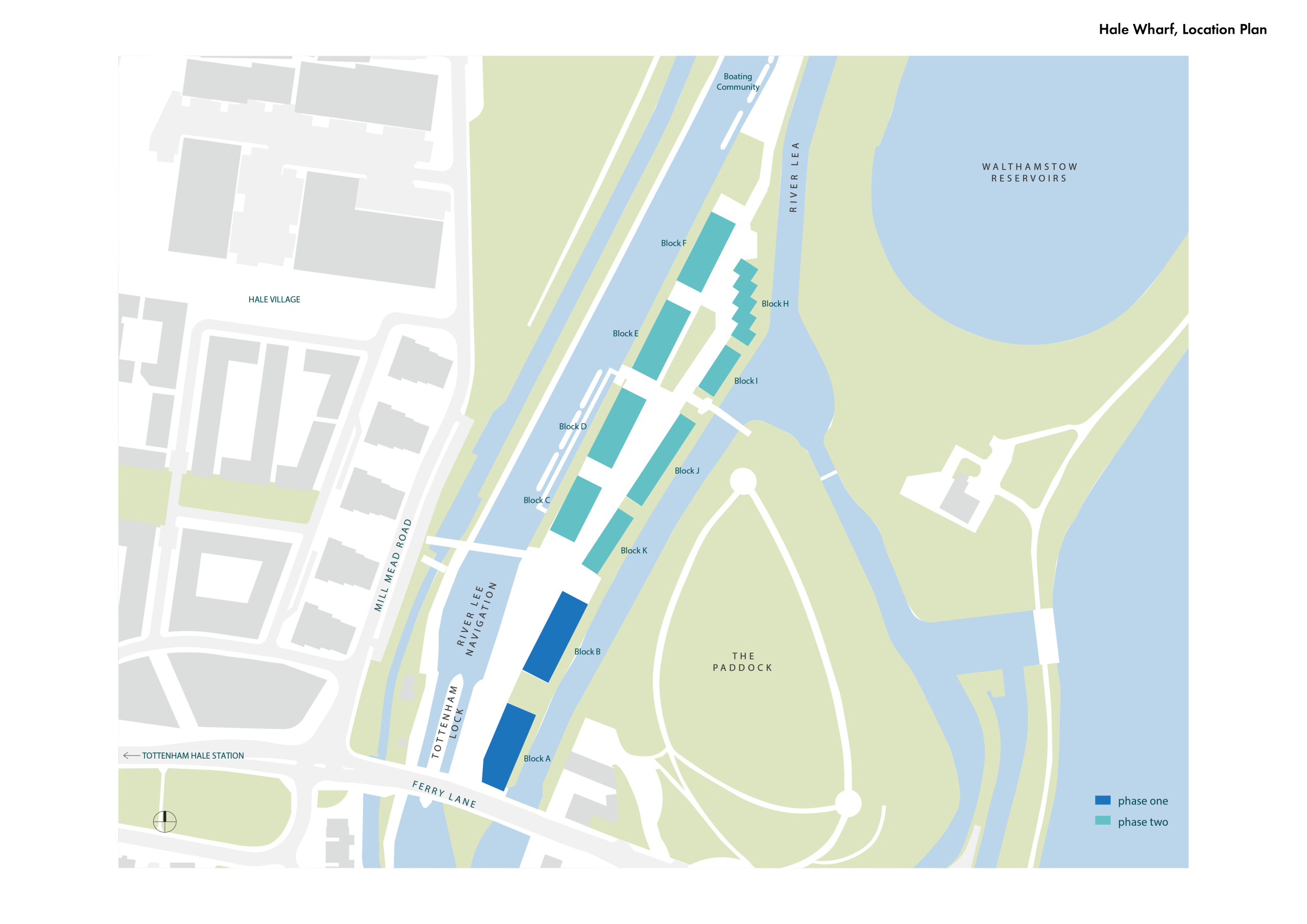

Situated on a slender island on the River Lea, Hale Wharf provides much needed new housing in a unique setting, in a changing part of north-east London. At a point of transition, residents of the 505 new homes can enjoy the site’s special location; a green and blue landscape extending to the north and east, with the urban centres of Hale Village and Tottenham Hale close by to the west for excellent transport links to the wider city.

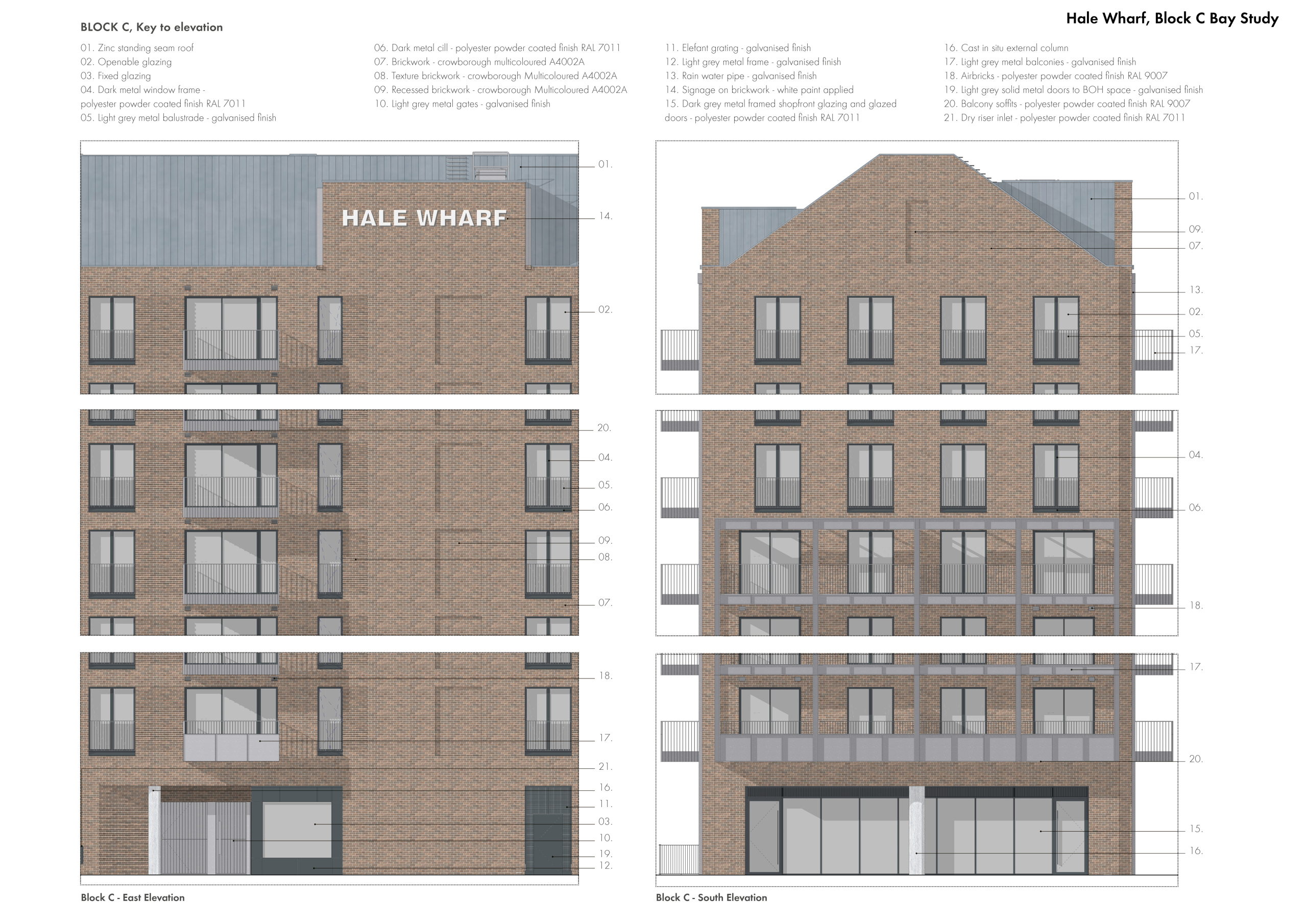

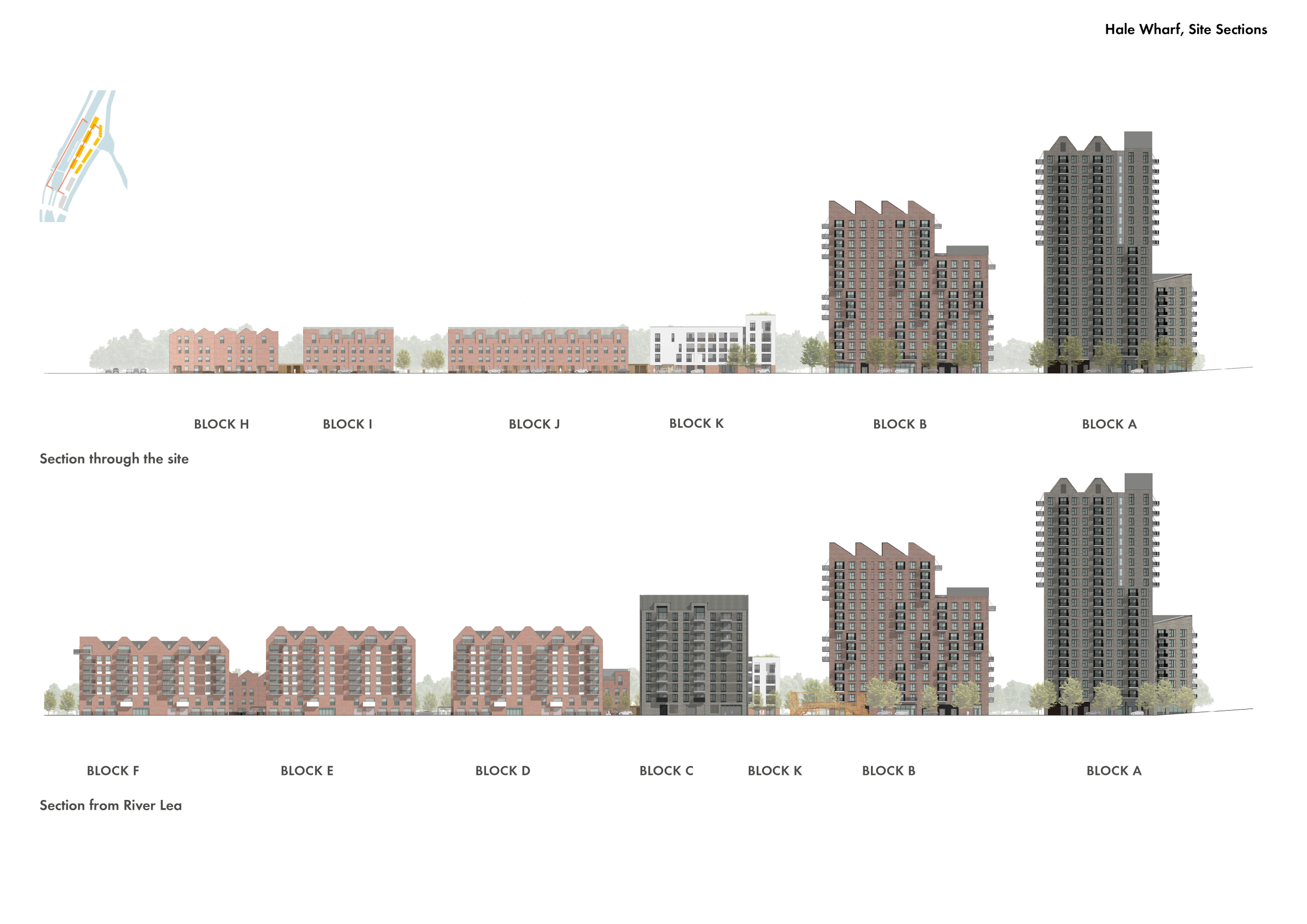

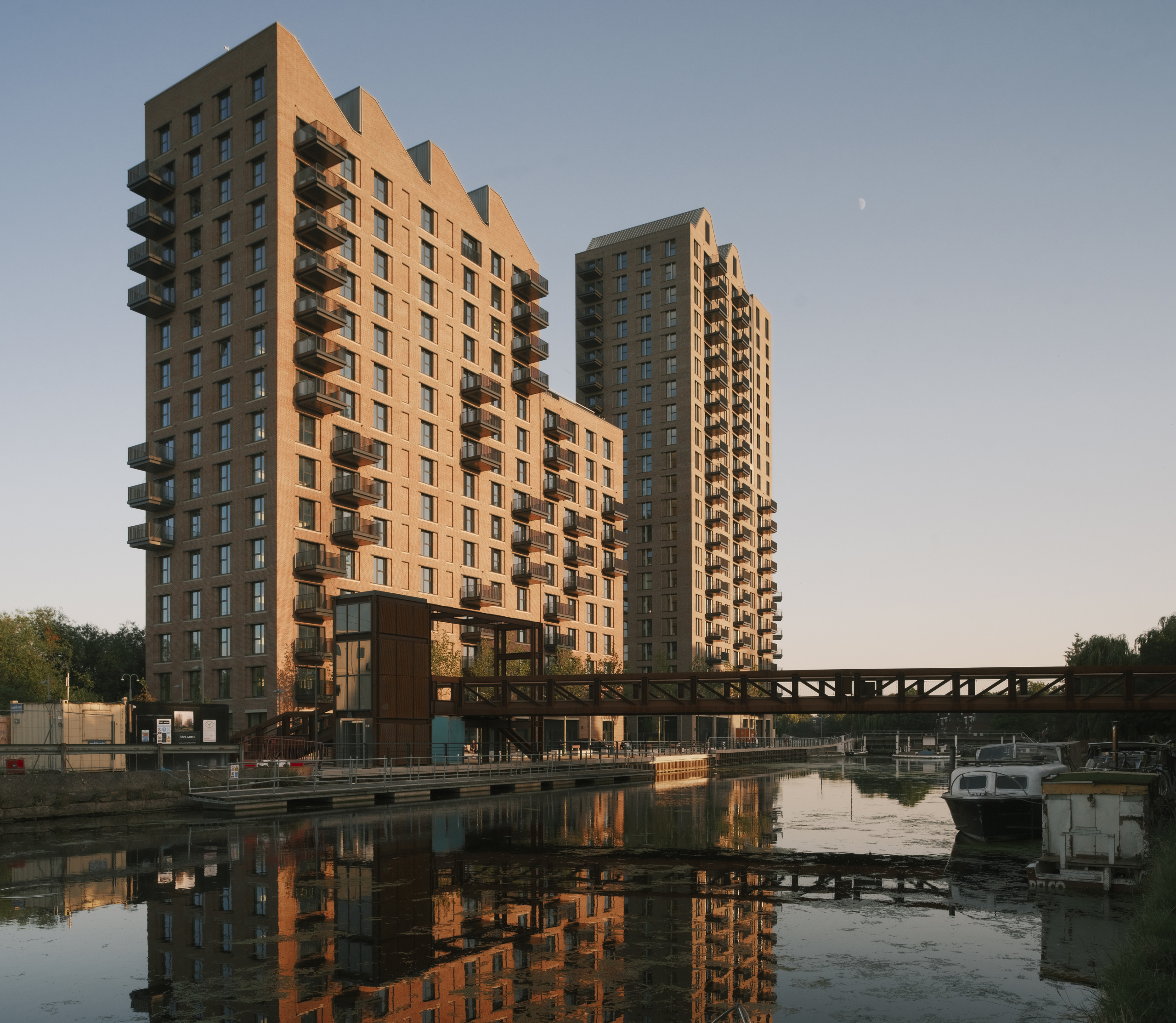

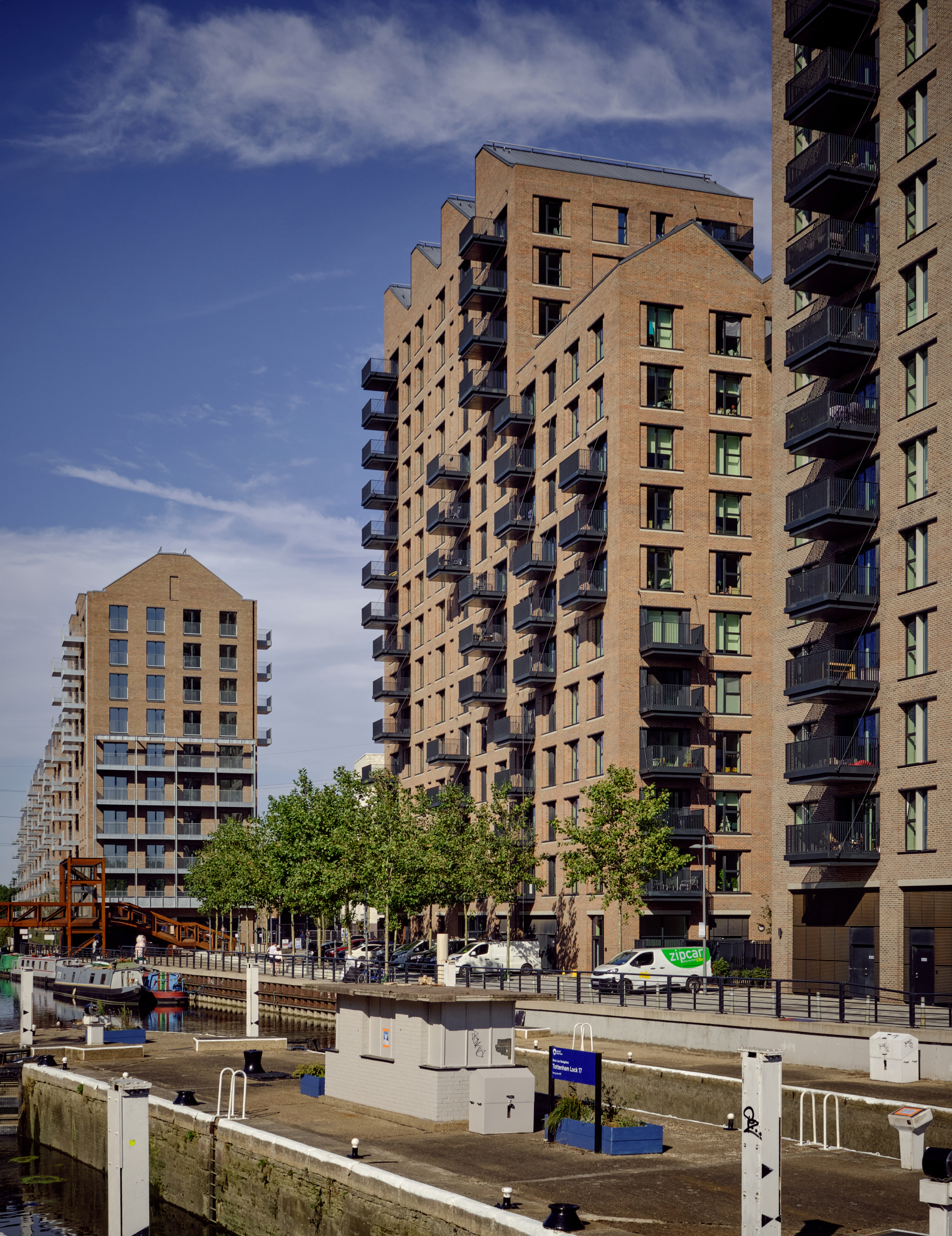

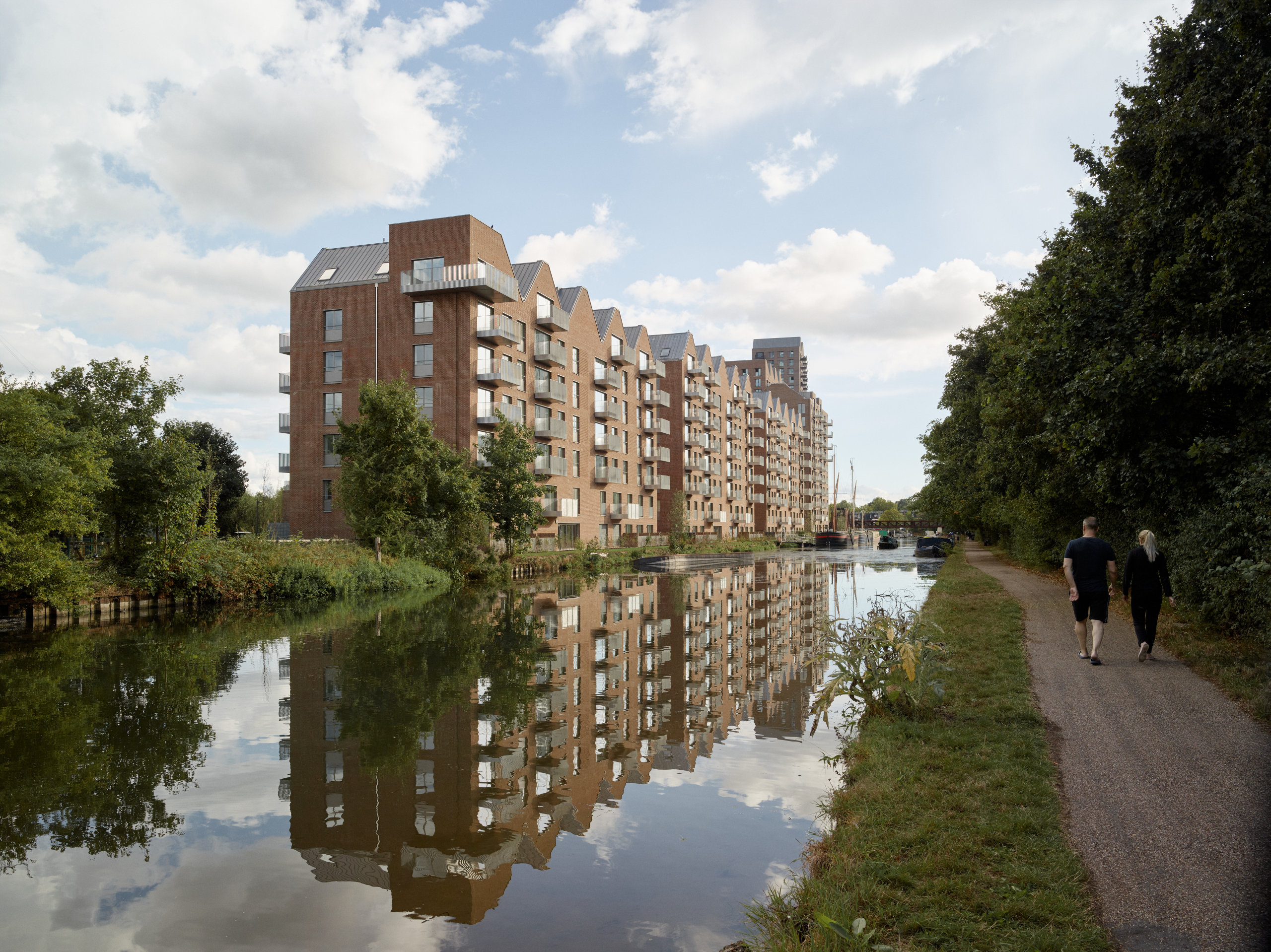

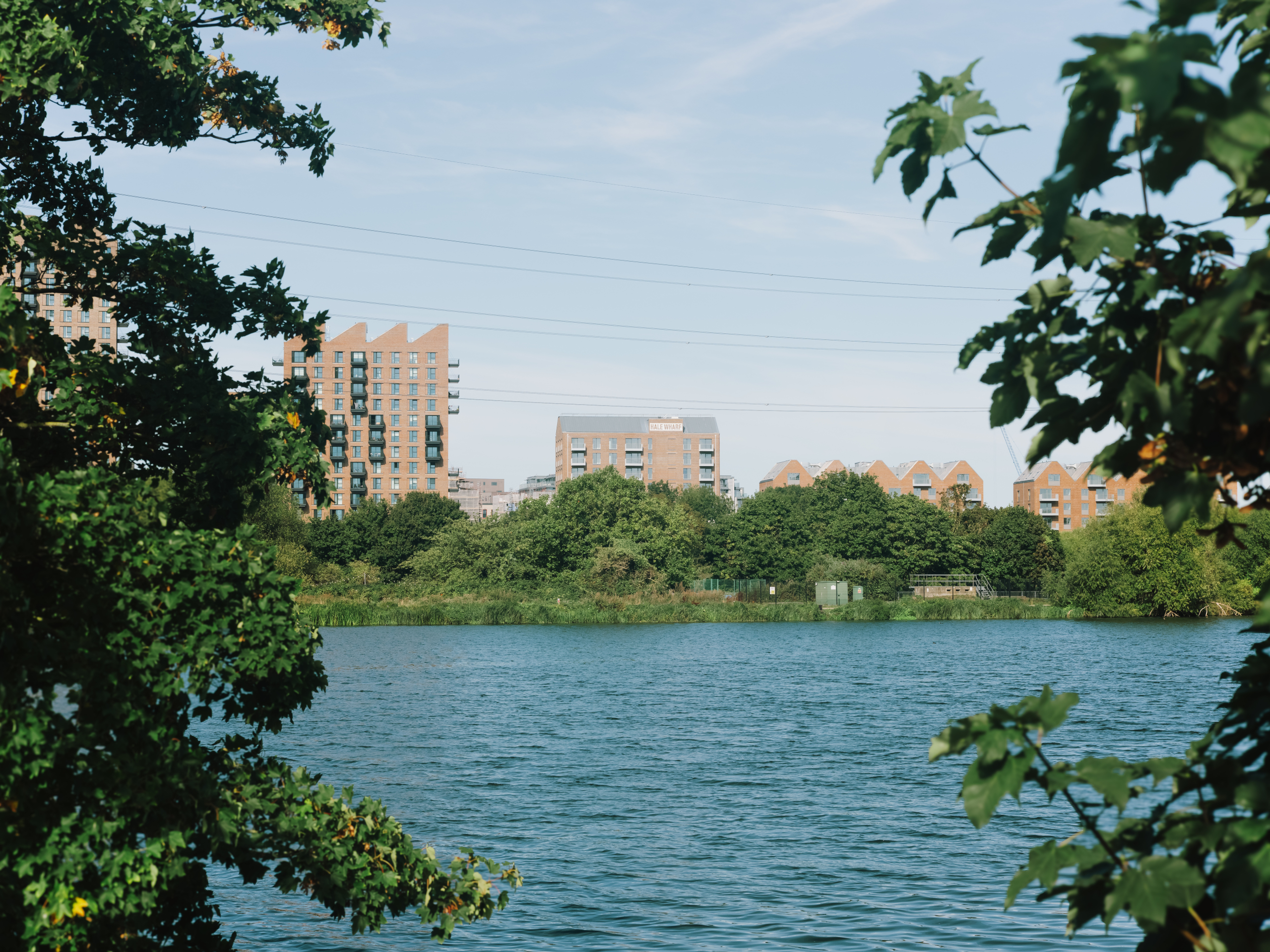

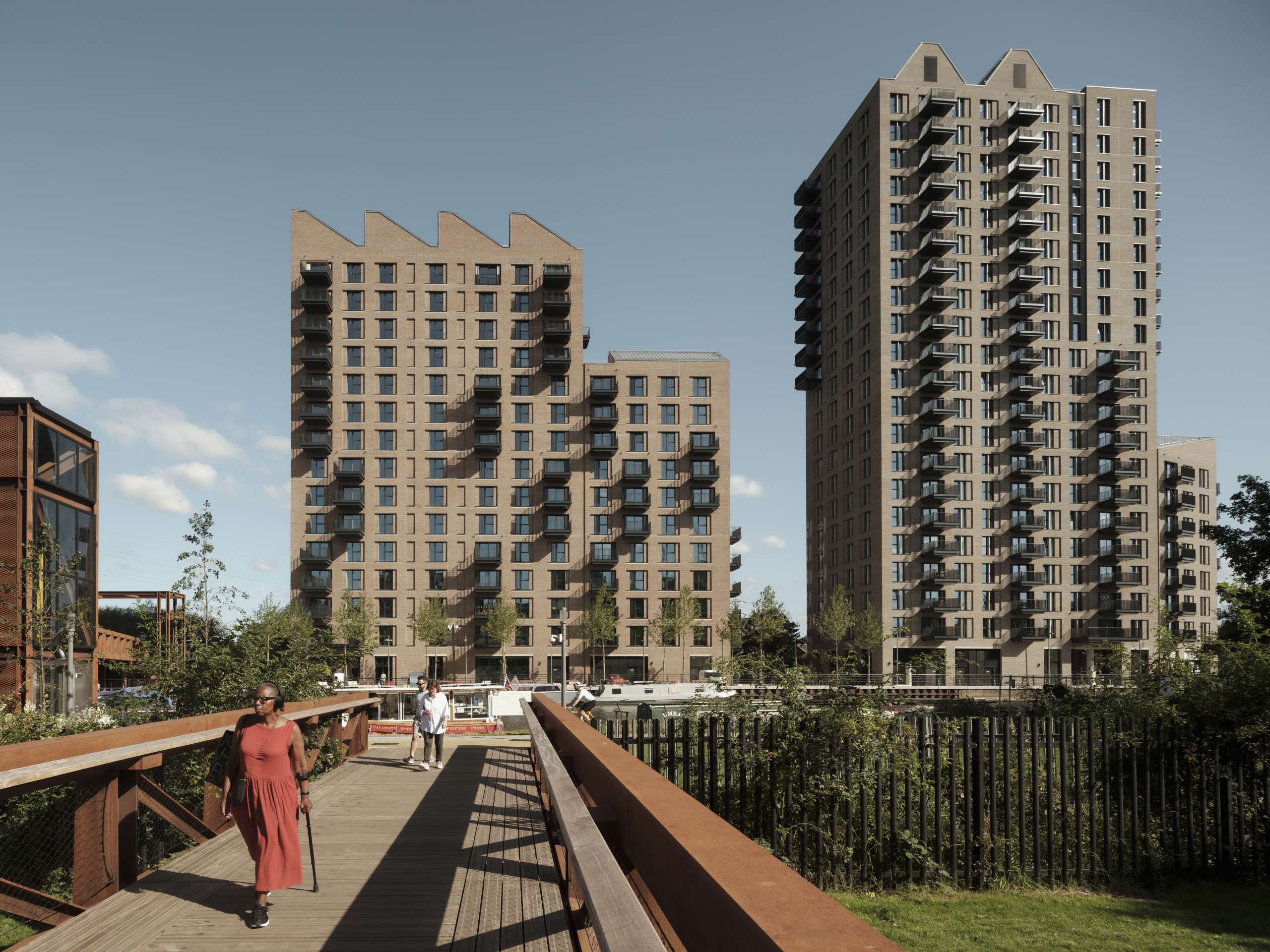

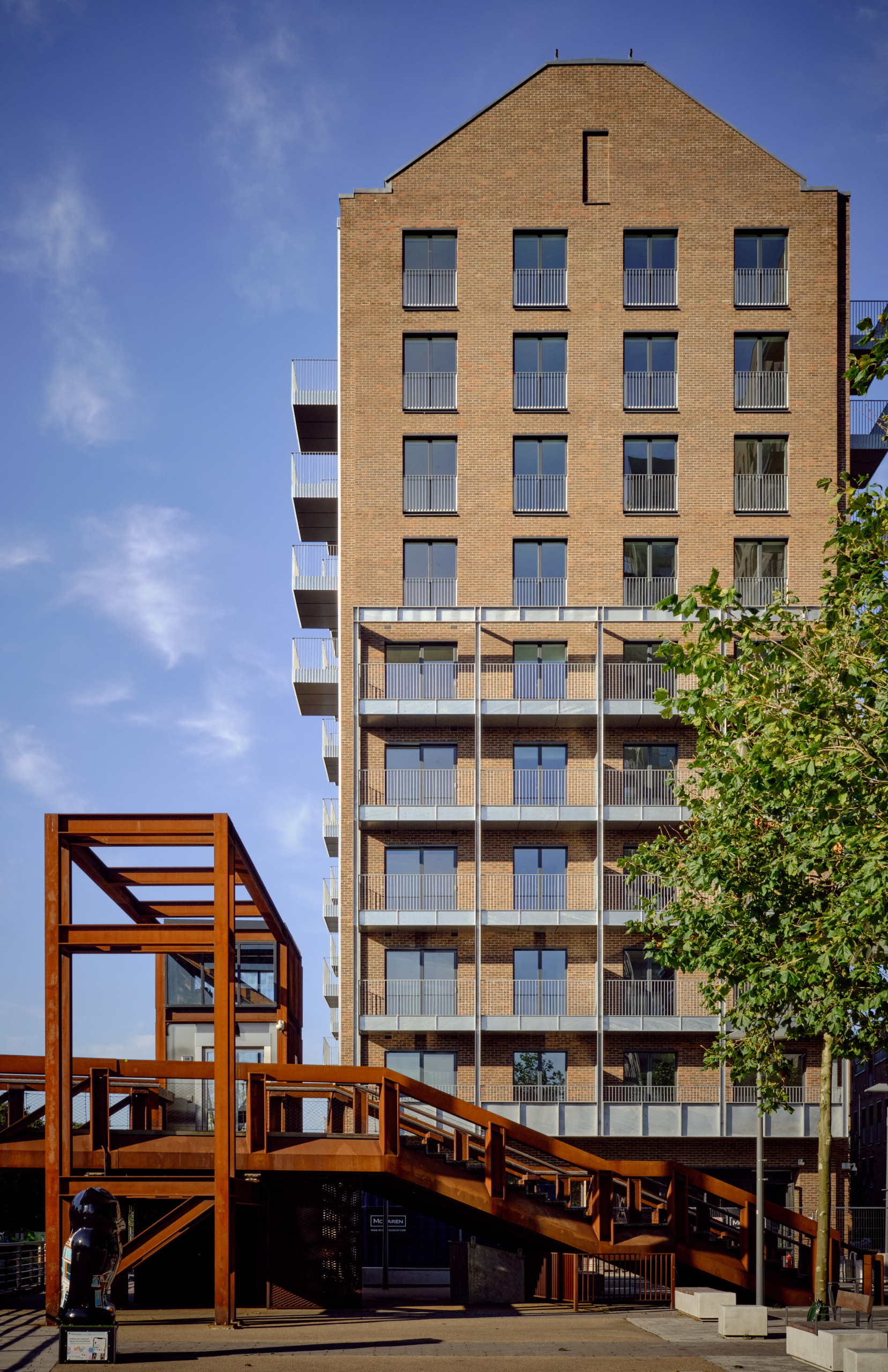

Arranged to maximise visual connection to the surroundings and allow permeability through the site, each home within the 10 buildings enjoys sweeping views of the landscape. At the southernmost point, two higher-density buildings of 21 and 14 storeys stand confidently towards Ferry Lane. Moving north, as the site becomes less urban and more enveloped by green, the buildings respond by stepping down towards the water. Their design references the site’s industrial past with striking zinc-clad sawtoothed and pitched rooflines, and brickwork punctuated with galvanized steel metalwork and projecting balconies.

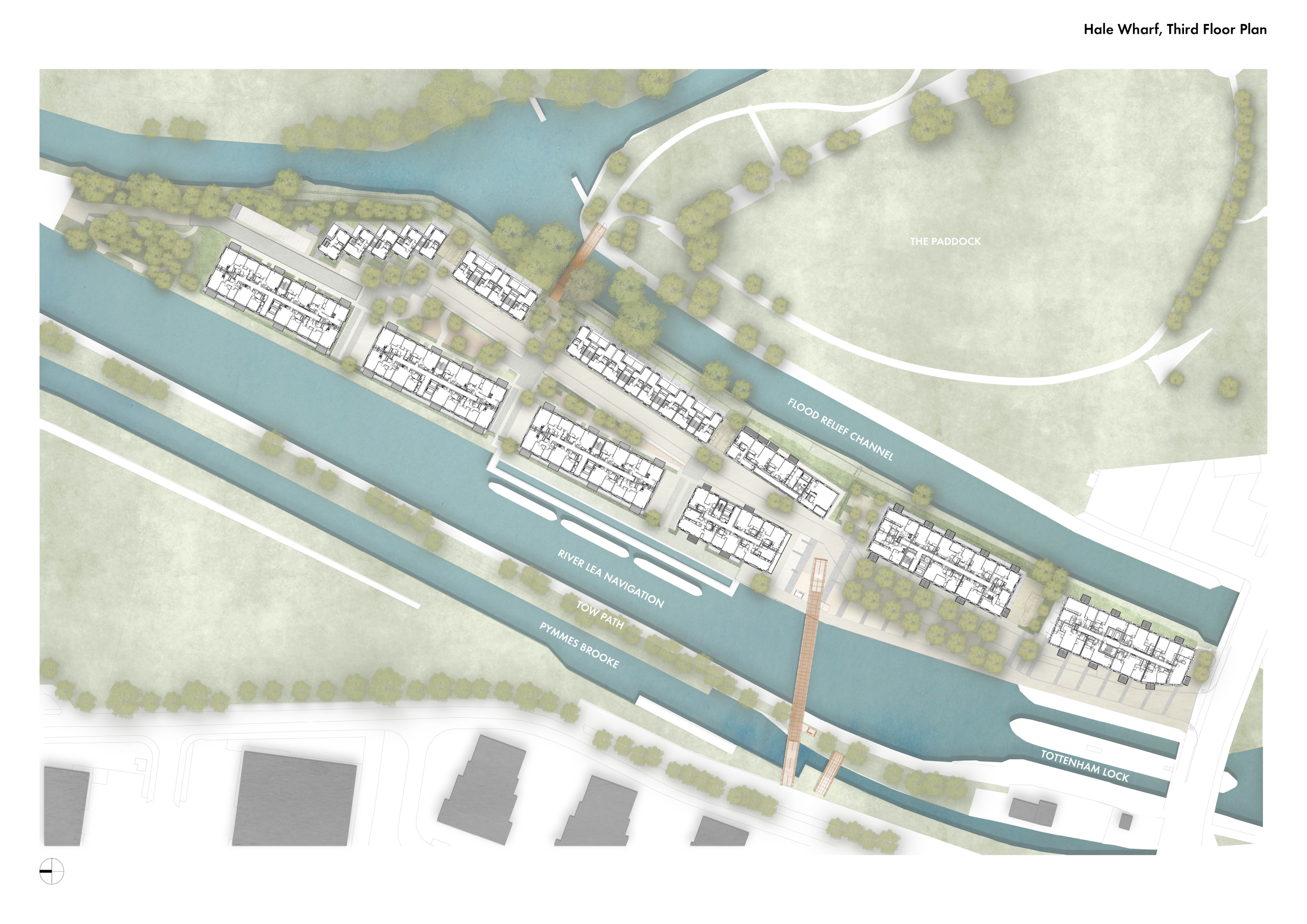

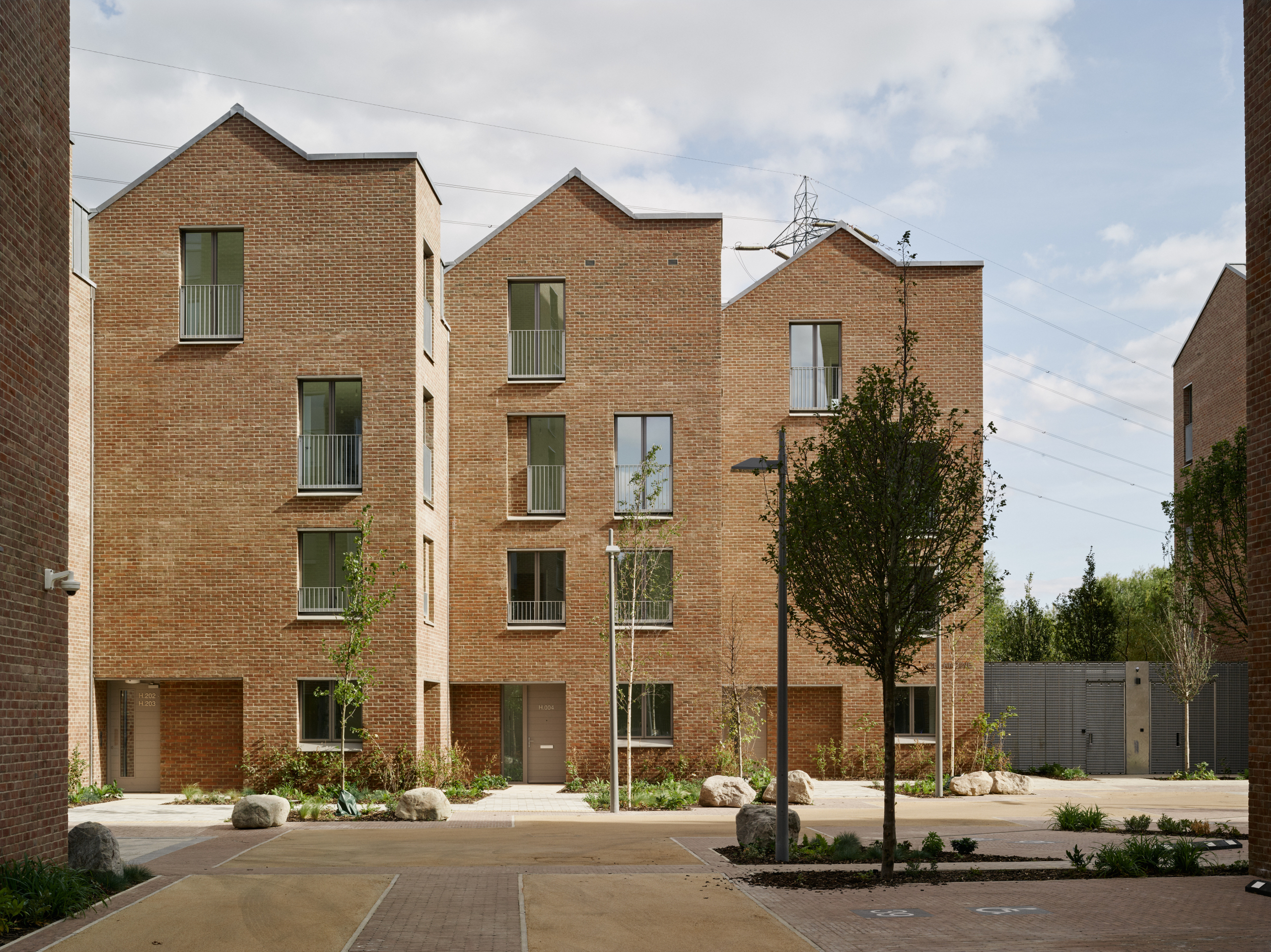

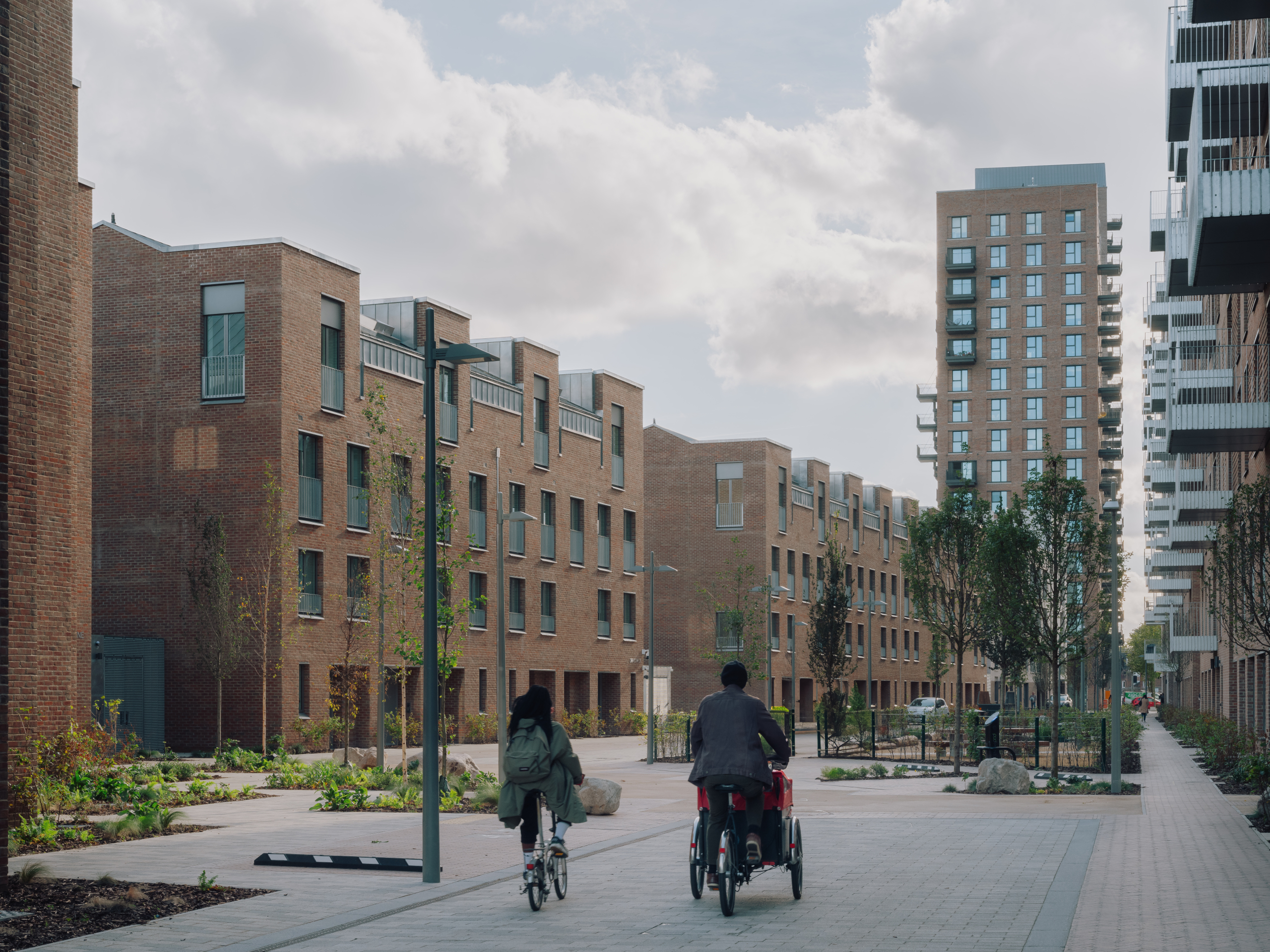

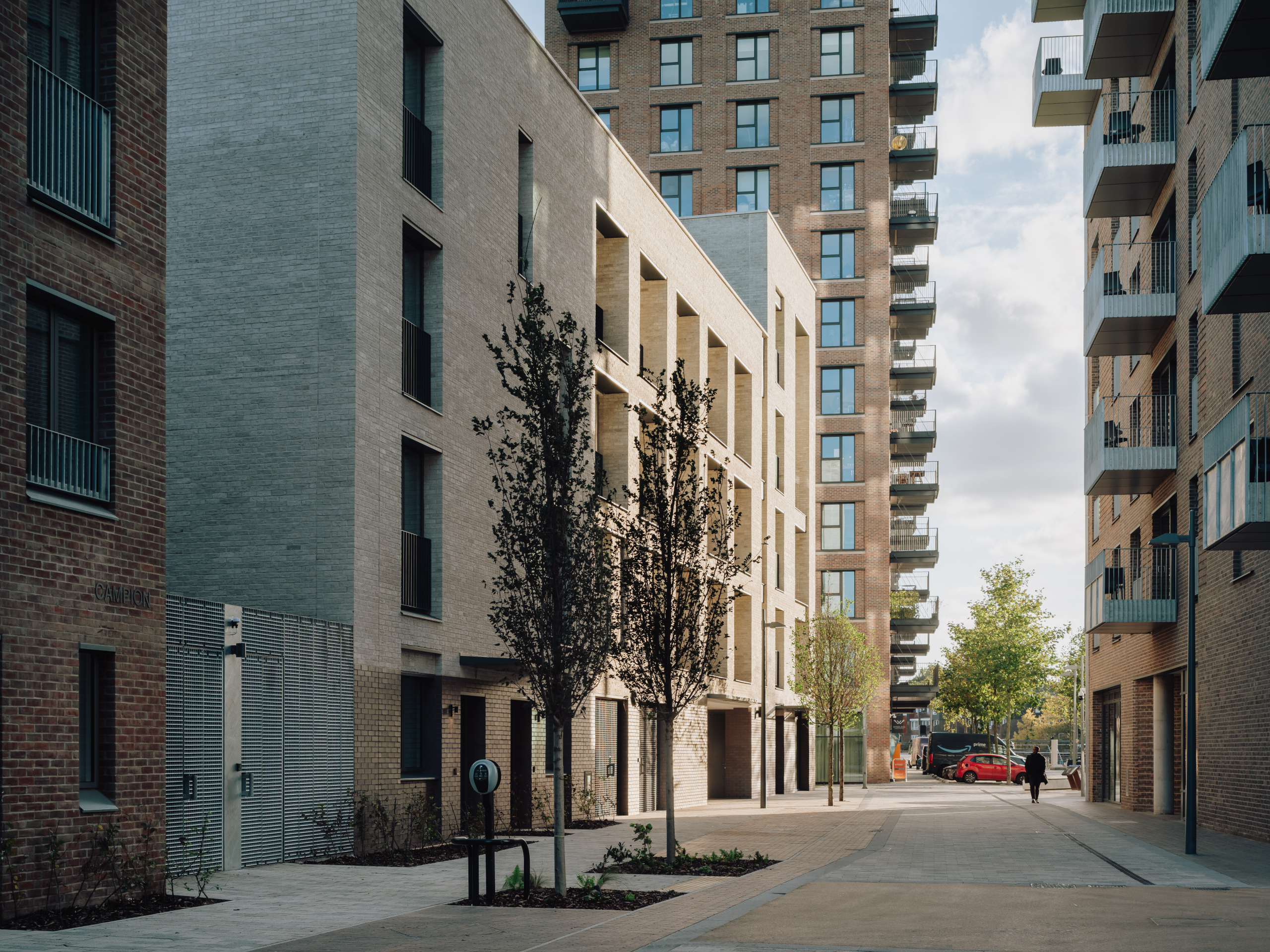

This island, long isolated and underutilised, is now connected with three new pedestrian and cycle bridges creating routes for active travel, vastly improving connectivity between Tottenham Hale and the Lea Valley Park. The Paddock Community Nature Reserve with its 10 acres of woodlands, scrub, meadow, ponds and rivers is now connected to the island with a new bridge. An intimate shared street running through the centre of the development has created a safe, child-friendly environment with areas of play and urban greening, forging a strong sense of community.

The success of Hale Wharf was evident when the London Borough of Haringey took the opportunity to purchase all six of affordable housing buildings, representing an additional 187 high-quality homes now available to council housing tenants. The Borough see Hale Wharf as a flagship scheme.

Key Features

- A unique setting with care taken to provide a visual connection to the surrounding landscape from every home.

- An isolated island becomes a permeable and connected place with three new bridges connecting to a nature reserve and the nearby urban centres of Tottenham Hale and Hale Village.

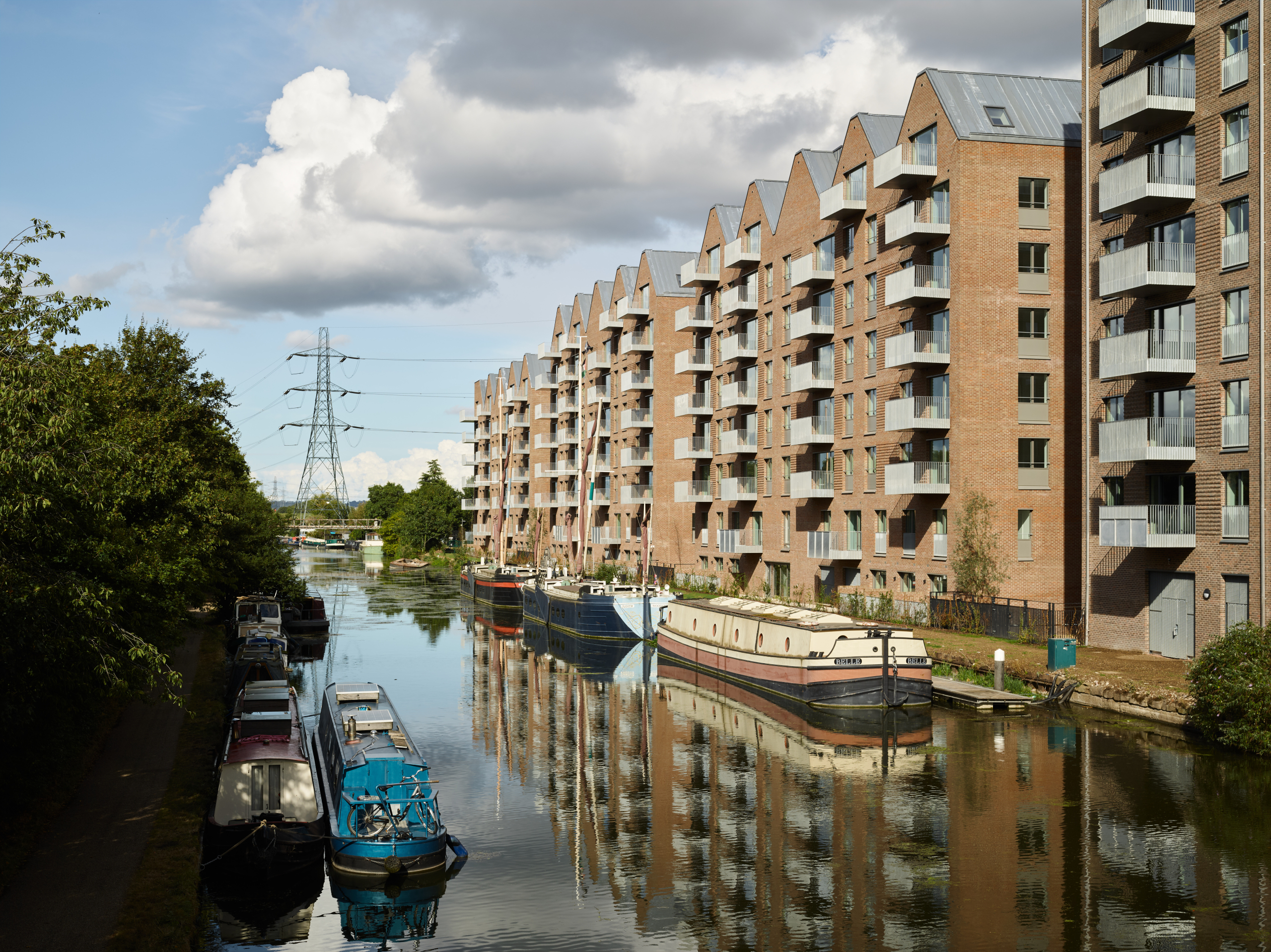

- The careful connection of an existing boating community, a business barge community, a nature reserve and a busy road to south through a housing development.

- A low-car neighbourhood and safe, child-friendly environment that fosters community.

- Buildings built to last, using robust, high-quality materials with low maintenance.

Download PDF

Scheme Information

Type

  • Multi-Aspect Apartments
  • Maisonettes
  • Terrace
  • Town house

Size

  • High rise
  • High density
  • Medium density

Cost/ownership

  • Affordable
  • Council
  • Private Ownership
  • PRS
  • Mixed Tenure
  • Mixed Use

Planning

  • Community Consultation
  • Infill
  • Urban Regeneration

Construction/Design

  • Brickwork
  • Contemporary Design

Sustainability

  • Biodiversity/Building with Nature
  • Low Energy in Use

Outdoor areas

  • Private Terraces
  • Outside Terrace
  • Biodiversity
  • Garden

Surrounding Area

  • Healthy Streets
  • Landscape
  • Communal Spaces
  • Play Spaces
  • Public open space

Specialised

  • Community

Sustainability

Access to nature is a hallmark of the scheme, and the environmentally significant nature reserve, The Paddock, was in a state of disrepair prior to Hale Wharf’s regeneration. Conservation volunteers were appointed to take over management in 2020 to ensure the health of its various habitats including woodland, scrub, meadow, ponds and rivers. Significant upgrades included the removal of Japanese Knotweed, enhancements to the woodland habitat and the provision for an educational facility and volunteer’s hub. The ongoing ecological conservation work is ensuring the resilience of the wetland habitat for the future, as well as becoming a more enjoyable place for residents and visitors to connect with nature. Extensive consultation with the Environment Agency ensured that the construction of Hale Wharf minimised adverse effects on the surrounding habitats. Construction noise avoided nesting season, to minimise disruption to nesting bird species and external lighting levels are kept low at night to avoid disturbance to other wildlife. As a scheme, Hale Wharf is built to last, with high quality materials chosen for their robustness and longevity. Architectural details were selected to be low maintenance; the use of galvanised balconies avoids the regular upkeep and renewal required of painted finishes. In the lower height buildings, lifts were avoided due to the associated maintenance costs which can often lead to high service charges for residents. Hale Wharf is also connected to the Lea Valley Energy Centre (district heating network), which has achieved a 35% reduction in CO2. Providing only 11 parking spaces, this low-car neighbourhood encourages active travel with excellent pedestrian and cycle routes to nearby Tottenham Hale, allowing residents access to low-carbon transport across London and beyond. Consultation with the existing boating community to the north was undertaken extensively and the employment barges moored on the channel were safeguarded.
